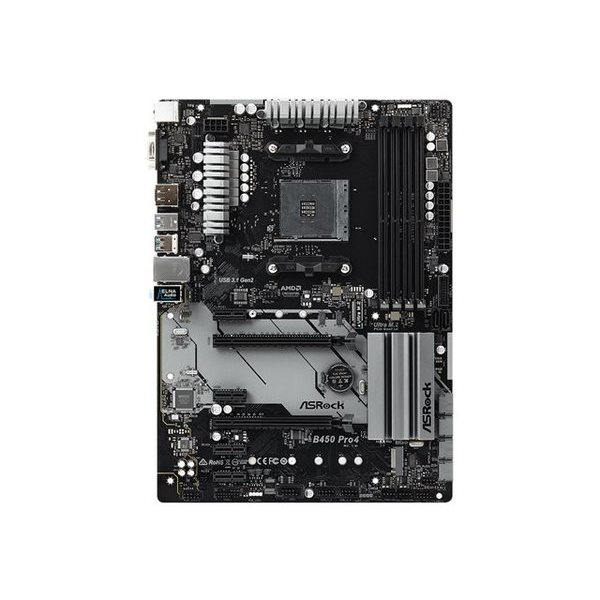

Μητρική ASRock B450 Pro4 Motherboard ATX Socket AM4

Τεχνικές προδιαγραφές

Γενικά

Product Type : Motherboard - ATX
Chipset Type : AMD B450
Processor Socket : Socket AM4
Max Processors Qty : 1
Compatible Processors : Ryzen

RAM

Max Size : 64 GB
Technology : DDR4
Bus Clock : 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.)
Supported RAM Integrity Check : Non-ECC, ECC
Registered or Buffered : Unbuffered
Features : Dual channel memory architecture

Γραφικά

Max Allocated RAM Size : 2 GB

Ήχος

Type : HD Audio (8-channel)
Audio Codec : Realtek ALC892
Compliant Standards : High Definition Audio, Premium Blu-ray audio support

Δίκτυο

Network Controller : Realtek RTL8111H
Network Interfaces : Gigabit Ethernet

Επεκτάσεις / Συνδεσιμότητα

Expansion Slots : 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x PCIe 2.0 x1
Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA
Interfaces : 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 4 x USB 3.1 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2
Internal Interfaces : 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors : 24-pin main power connector, 8-pin ATX12V connector

Χαρακτηριστικά

BIOS Type : AMI
BIOS Features : Multilingual BIOS, JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
Hardware Monitoring : CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
s l e e p / Wake Up : Wake on LAN (WOL)
Hardware Features : ASRock Instant Flash, All-Solid Capacitor motherboard Design, HDCP compliant, 15µ Gold Contact, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, Premium Power Choke, 9 Phase Power Design, 2oz Copper PCB, AMD StoreMI technology

Έξτρα

Included Accessories : I/O back plate, 2 x M.2 screws
Cables Included : 2 x Serial ATA cable
Software Included : Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome RGB
Compliant Standards : FCC, EuP Ready, ErP Ready
Width : 30.5 cm
Depth : 22.4 cm

Εγγύηση

Service & Support : Limited warranty - 3 years
