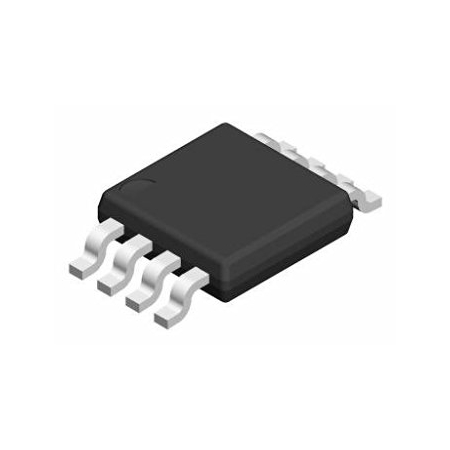

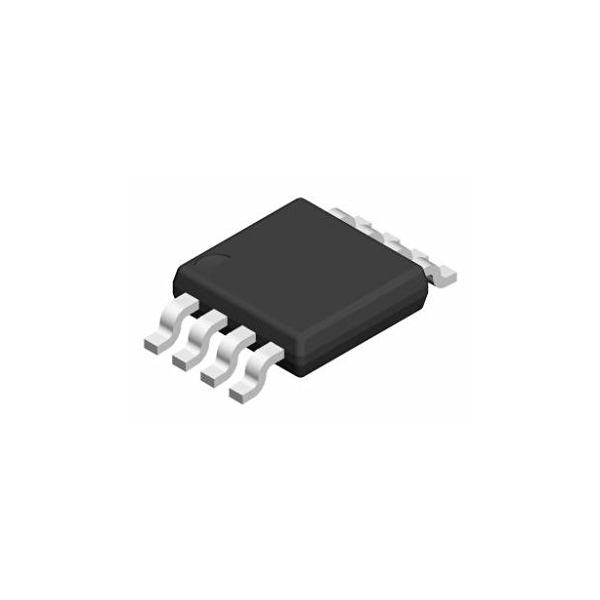

MOSFET 30V N-Channel PowerTrench SyncFET FDS6680AS

Manufacturer:Fairchild Semiconductor

Product Category:MOSFET

RoHS: Details

Mounting Style:SMD/SMT

Package/Case:SOIC-Narrow-8

Number of Channels:1 Channel

Transistor Polarity:N-Channel

Vds - Drain-Source Breakdown Voltage:30 V

Id - Continuous Drain Current:11.5 A

Rds On - Drain-Source Resistance:100 mOhms

Vgs - Gate-Source Voltage:20 V

Maximum Operating Temperature:+ 150 C

Packaging:Reel

Channel Mode:Enhancement

Brand:Fairchild Semiconductor

Configuration:Single Quad Drain Triple Source

Fall Time:11 ns

Minimum Operating Temperature:- 55 C

Pd - Power Dissipation:2.5 W

Rise Time:5 ns, 12 ns

Series:PowerTrench, SyncFET

Factory Pack Quantity:2500

Transistor Type:1 N-Channel

Typical Turn-Off Delay Time:27 ns, 18 ns

Typical Turn-On Delay Time:9 ns, 11 ns

Part # Aliases:FDS6680AS_NL

Unit Weight:187 mg
