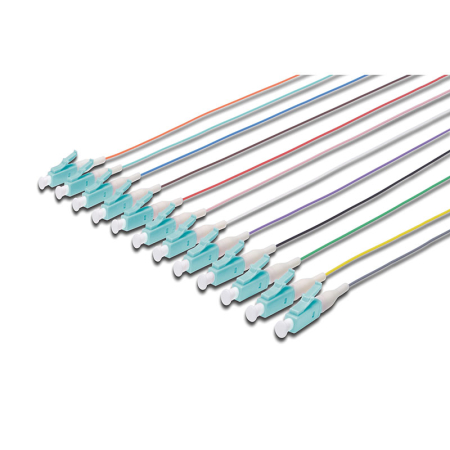

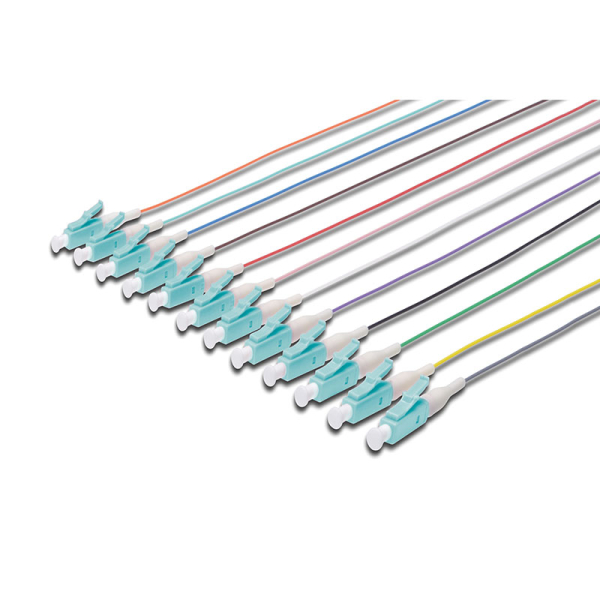

Fiber Pigtail DIGITUS DK-25332-02/3 LC 50/125 OM3 LSZH 2m 12τεμ
FO pigtail set, 12 pcs., LC, MM OM3 50/125 μ loose buffer, color
code DIN
IEC 304, 2 m
The DIGITUS® Fiber Optic Colored Pigtails are available as LC
Simplex,
SC Simplex and ST Simplex version and offer with the classes
OS2,
OM2, OM3 and OM4 best performance and link quality for your
network.
The connector conforms acc. IEC 61754-4 2002 and is
equipped with a Zirconia
ceramic ferrule. The colored buffers are
color coded according to IEC 304
(white, violet, turquoise, black, red,
pink, orange, gray, green, yellow,
brown, blue).
Future-oriented standards and high-end quality for your
network.
• LC simplex pigtail, OM3 50/125 μ 2 m
• Standard connector acc.
IEC 61754-4 2002
• Operating temperature: -25 °C ... +80 °C
• Storage
temperature: -20 °C ... +65 °C
• Insertion loss MM PC: max. 0.4 dB Return
loss MM PC: > 25 dB
• Zirconia ceramic ferrule
• Secondary coating
dimensions: O 0.9 ± 0.1 mm
• Primary coating: Acrylate; O 250 ± 15 μm
•
Colored buffer, according to IEC 304 in the colors white, violet,
turquoise,
black, red, pink, orange, grey, green, yellow, brown,
blue
• 12 pcs in
package
• Loose buffer
• Boot: single-color
• Cable jacket: LSOH
•
Connector 1: LC
• Fiber class: OM3
• Fiber diameter: 50/125μ
• Mode:
Multimode
• Length: 2 m
