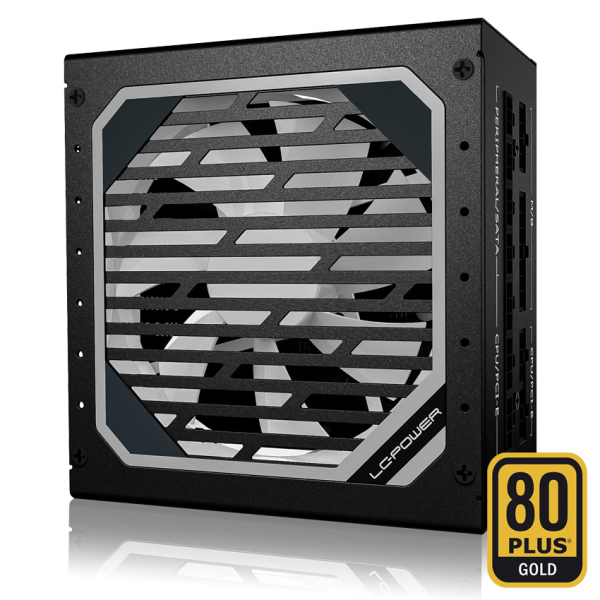

Τροφοδοτικό LC-Power Super Silent Modular Series LC6850M 850W 80+ Gold
Power supply series | Super Silent Modular |
ATX standard | ATX V2.31 |

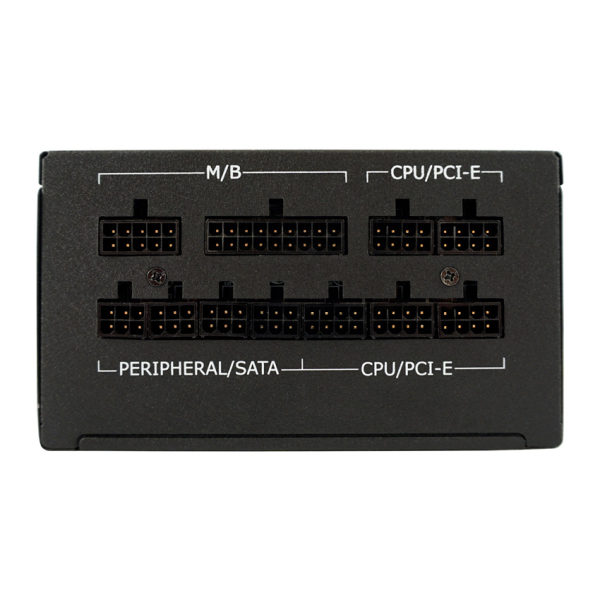

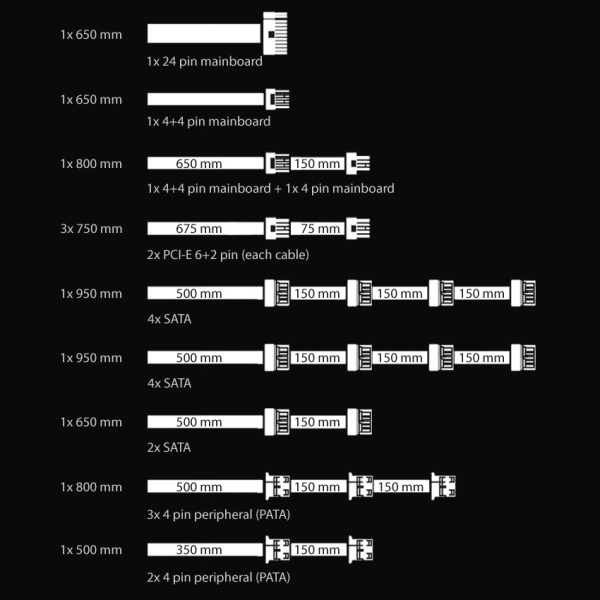

Connectors | |
20+4 pin mainboard | 1x 650 mm |
4+4 pin mainboard 12 V (8 pin EPS) | 1x 650 mm |
4 pin mainboard 12 V | 1x 800 mm |
PCI-Express 6+2 pin | 6x overall (3x 675 mm / 3x 750 mm) |
SATA | 10x overall (3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm) |
PATA | 5x overall (1x 350 mm / 2x 500 mm/ 1x 650 mm / 1x 800 mm) |
FDD | - |
Mark of conformity | CE / TUV |
Fan | 120 mm |
PFC | active |
Dimension PSU | 86 x 150 x 142 mm |
Dimension retail | 115 x 270 x 186 mm |
Weight (product / overall) | 2,29 / 2,57 kg |
Power rating | 850 W |
+3,3 V | 20 A |
+5 V | 20 A |
max. combined | 100 W |
+12 V | 70 A |
max. combined | 850 W |
Certified | 80 PLUS? GOLD |
Efficiency | up to 90 % |
Standby consumption | < 0,5 W - ErP 2013 |
Temperature control for case fan | yes |
Security circuitry | OVP = Over-Voltage Protection OCP = Over-Current Protection OPP = Over-Power Protection SCP = Short-Circuit Protection UVP = Under-Voltage Protection |
Full range (110 V / 220 V) | yes |
Haswell compatible | yes |
Colour | hammered black |
Warranty | 3 years |
