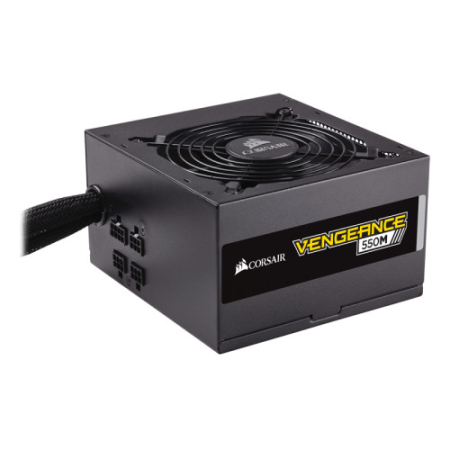

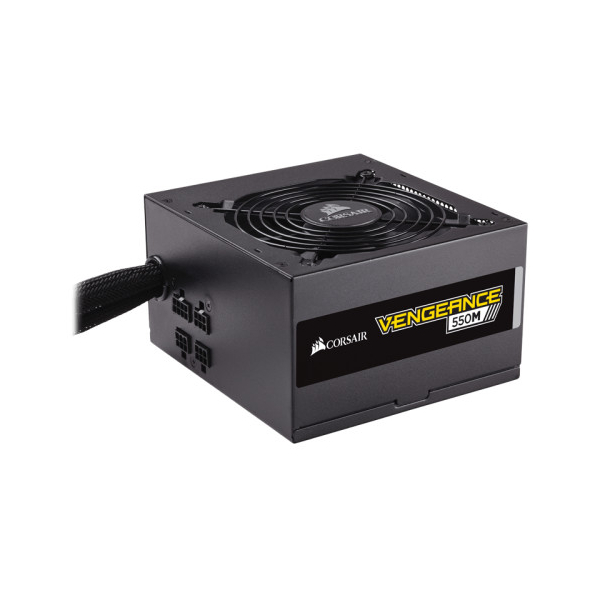

Τροφοδοτικό Corsair Vengeance V550M 550W 80+ Bronze

Τεχνικά Χαρακτηριστικά

Γενικά

Device Type : Power supply - internal
Specification Compliance : ATX12V 2.4/ EPS12V 2.92
PSU Form Factor : ATX
Colour : Matte black
Localisation : Germany

Τροφοδοσία

Input Voltage : AC 100-240 V
Frequency Required : 47 - 63 Hz
Power Output Connectors Details : 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage : +3.3, +5, ±12 V
Power Capacity : 550 Watt
Output Current : +3.3V - 25 A ¦ +5V - 20 A ¦ +12V1 - 25 A ¦ +12V2 - 25 A ¦ +12V3 - 25 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
Modular Cable Management : Yes
80 PLUS Certification : 80 PLUS Bronze

Διάφορα

MTBF : 100,000 hours
Features : Sleeved cables, overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, triple 12V rails, semi-modular
Compliant Standards : UL, TUV, BSMI, cUL, CB, CCC, FCC, RoHS, WEEE, ICES, KC, EAC, China RoHS, RCM

Εγγύηση

Service & Support : Limited warranty - 5 years

Διαστάσεις

Width : 15 cm
Depth : 14 cm
Height : 8.6 cm
Weight : 1.57 kg
