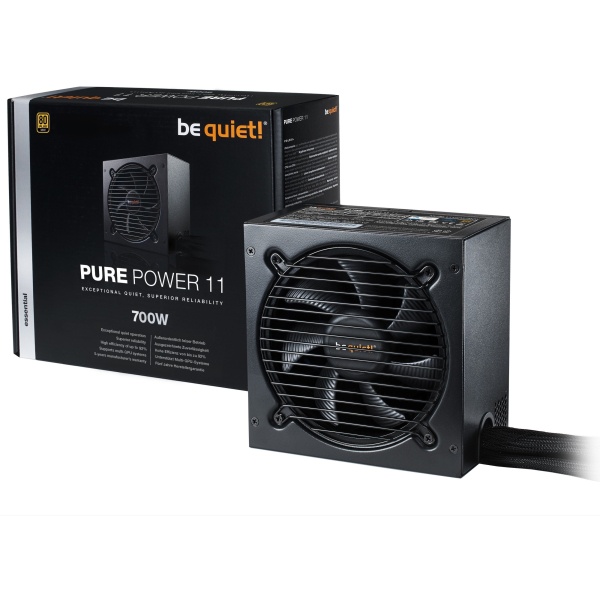

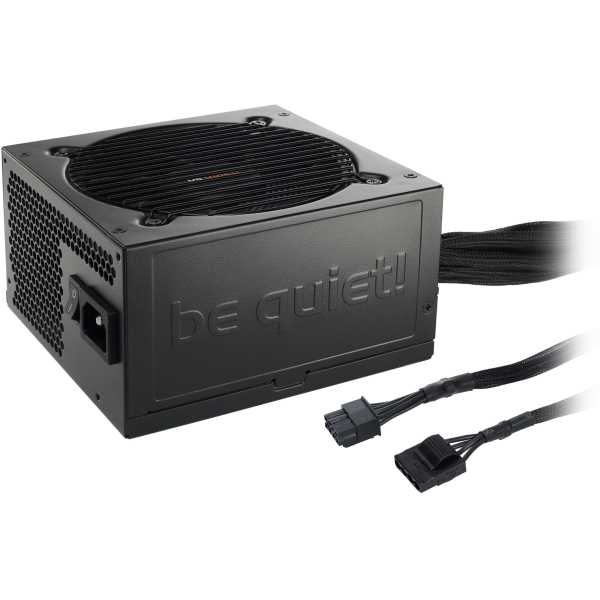

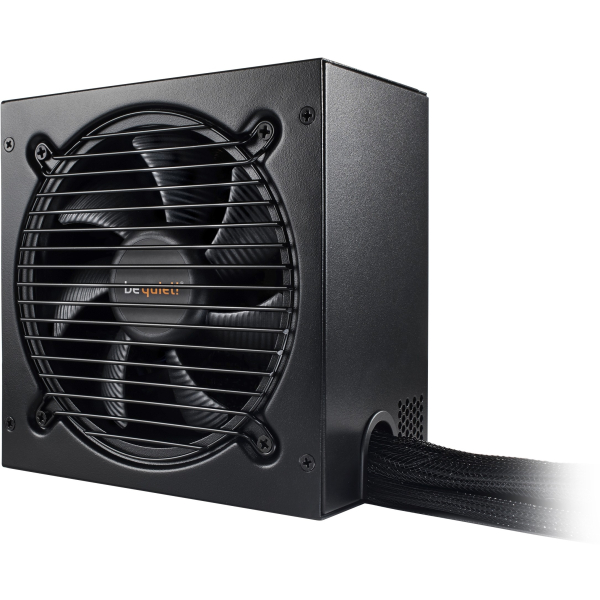

Τροφοδοτικό 700W be quiet! PURE POWER 11
Τροφοδοτικό 700W be quiet! PURE POWER 11Τροφοδοτικό 700W be quiet! PURE POWER 11Τροφοδοτικό 700W be quiet! PURE POWER 11
Τροφοδοτικό 700W be quiet! PURE POWER 11
Kωδικός 004552
Δειτε όλα τα προϊόντα της BE QUIET
Προσωρινά μή διαθέσιμο
109.00€
Web Price 9%
 Τιμή ανά τμχ 99.60€

Τροφοδοτικό 700W be quiet! PURE POWER 11

specification

power
Overall performance
700 W
AC input voltage
100-240V
Peak current
750 W
AC input frequency
50-60 Hz
Input current
10 A
Power factor
0.99
Power factor correction filter (PFC)
active
Combined current (+ 3.3V)
150 W
Combined electricity (+ 12V)
672 W.
Combined current (+ 5V)
150 W
Combined current (-12V)
3.6 W
Combined current (+ 5Vsb)
15 W
Max. Output current (+ 3.3V)
25 A
Max. Output current (+ 12V1)
36 A
Max output current (+ 12V2)
30 A
Max output current (+ 5V)
20 A
Max. Output current (-12V)
0.3 A
Max. Output current (+ 5Vsb)
3 A
Hold time
25 ms
Efficiency
92%
Energy protection properties
Overcurrent, overload, overvoltage, overheating, short circuit, undervoltage
Connections and interfaces
Motherboard connector
20 + 4 pin ATX
Power cable length motherboard
55 cm
Number of SATA power connectors
6th
Number of PATA power connections
3
SATA power cord length
500,650,800 mm
Number of PCI Express power connectors 6 + 2pin
4th
PCI Express power cord length
50 cm
CPU connector (4 + 4 pin)
CPU power cable length
60 cm
Floppy disk drive connector
design
Product color
black
Fan diameter
12 cm
Number of fans
1 fan
Services
purpose
Pc
Power Supply Unit (PSU) form factor
ATX
80 plus certification
80 PLUS gold
ATX version
2.4
EPS version
2.92
Storage type
gun
safety
CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC
Certification
ErP, WEEE
Other functions
Screws included
Cable ties included
Noise level (Quiet mode, <30%)
11.4 dB
Noise level (sleep mode, 50%)
12.2 dB
Noise level (full load mode, 100%)
25.9 dB
operating manual
Logistic data
Width of the shipping box
32.6 cm
Length of the shipping box
51.4 cm
Shipping box height
24.1 cm
Shipping box weight
15.4 kg
Quantity per shipping box
6 piece (s)
Packing data
Packaging width
210 mm
Packaging depth
240 mm
Packing height
96 mm
Package weight
2.39 kg
Packaging type
box
Weight and dimensions
width
150 mm
depth
150 mm
height
86 mm
Weight
2.11 kg
Technical details
Sustainability certificates
RoHS, ENERGY STAR
