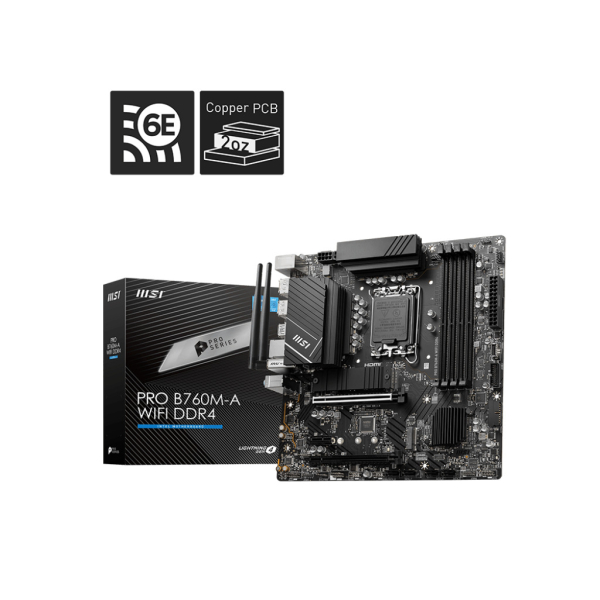

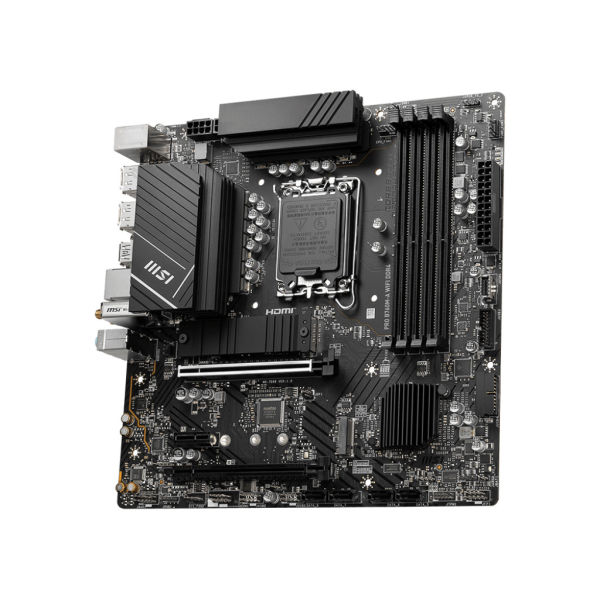

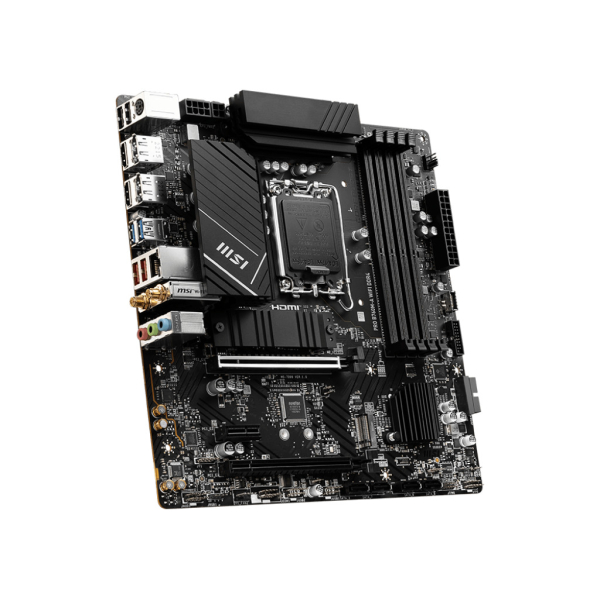

11%Μητρική MSI PRO B760M-A WIFI mATX LGA1700 DDR5
Technical Details
Chipset
INTEL B760
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold
and Celeron® Processors
LGA 1700
Memory
4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6800+(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
•
1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
•
2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+
MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller
Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics
2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x
DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available
only on processors featuring integrated graphics. Graphics specifications may
vary depending on the CPU installed.
Slot
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to
x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition
Audio
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports
2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0
x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8
will be unavailable when installing M.2 SATA SSD in the M2_2
slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage
devices
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x
USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A
(Rear)
LAN
Realtek® RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the
M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to
2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports
Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on
every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3
will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU
Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis
Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable
V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin
header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x
USB 5Gbps Type C ports
LED FEATURE
4x EZ Debug LED

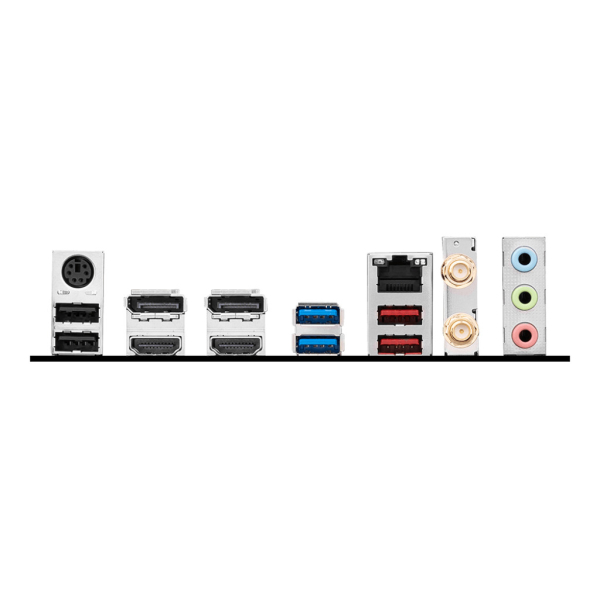

BACK PANEL PORTS
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10
64-bit
BOX CONTENT
PCB Info
mATX
243.84mmx243.84mm
