Χαρακτηριστικά

Brand: MSI

CPU Socket: AM4

Chipset: AMD B550

CPU supports: Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.

Form factor: Micro ATX

Memory Standard: DDR4

Maximum Memory Supported: 128 GB

Number of Memory Slots: 4

Frequency Memory: 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz

Support Dualchannel: Yes

Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU

Integrated Audio: Realtek ALC892

Integrated LAN: Realtek RTL8111H chip (10/100/1000 Mbit)

PCI-E x16: 1 x PCIe 4.0/3.0 x16

PCI-E x1: 2

Interface Serial ATA: 4 x SATA3 6.0 Gb/s

M2 socket: 2x M.2 slots (Key M); M2_1 slot (from AMD processor); Supports PCIe 4.0/ 3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/ 2260/ 2280 storage devices

Raid support: 0,1,10

Power Connector: 1 x 24-pin, 1 x 8-pin

Video slot: PCI Express

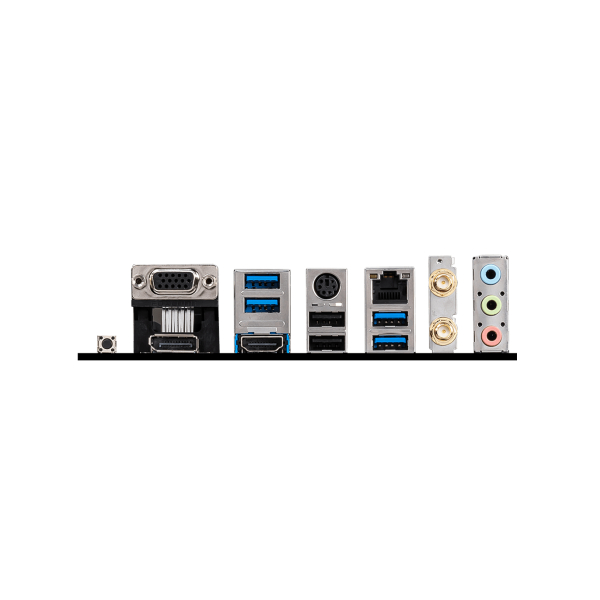

Connectors: VGA; USB 3.2 Gen 1 5Gbps Type-A; Keyboard / Mouse; LAN; Flash BIOS Button; DisplayPort; HDMI; USB 2.0; USB 3.2 Gen 1 5Gbps Type-A; Wi-Fi Antenna connectors; 3x Audio jacks

USB 3.2: 4

USB 2.0: 2
