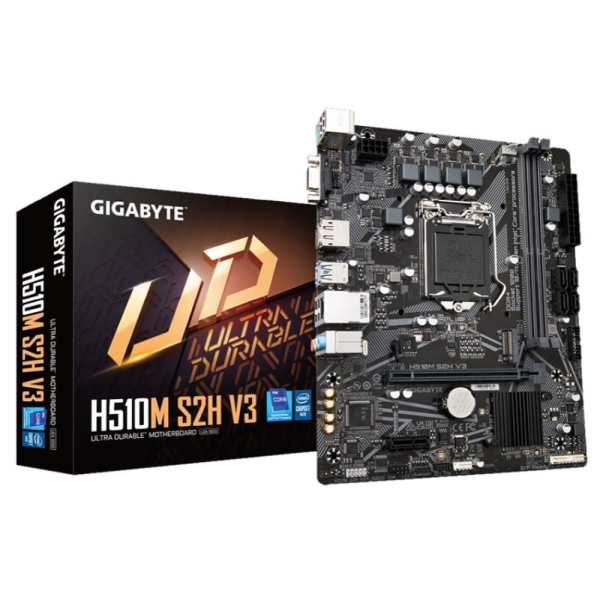

3%Μητρική Gigabyte H510M S2H V3 mATX LGA1200 Socket
Mainboard
Form Factor
Micro ATX
Chipset Type
Intel H470
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
3200 MHz, 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz
Processor Socket
LGA1200 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x audio - header, 1 x serial - header, 2 x USB 2.0 - header,
2 x USB 3.2 Gen 1 - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory
architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
64 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 3.0
x16, 2 x DIMM 288-pin, 1 x PCIe 3.0 x1
Interfaces
Storage Interfaces
SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 /
RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 /
RAID 10 / RAID 5
Storage
Serial ATA-600, M.2 socket
USB / FireWire
USB 3.2 Gen 1
Storage Ports
4 x SATA-600, 1 x M.2
USB / FireWire Ports Configuration (Active)
2 x USB 3.2 Gen 1 + 6 x USB 2.0
USB / FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 2 x USB 2.0
Software
Software Included
Norton Internet Security (OEM Version), EasyTune, Xpress
Install, GIGABYTE App Center, @BIOS, Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
22,6 cm
Depth
18,5 cm
