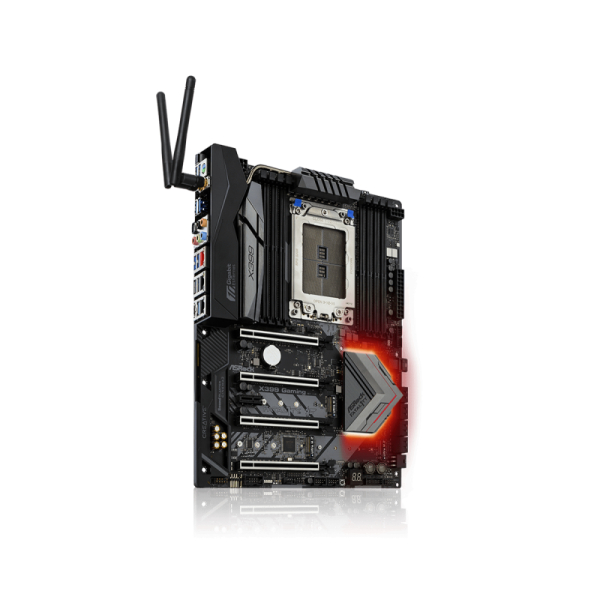

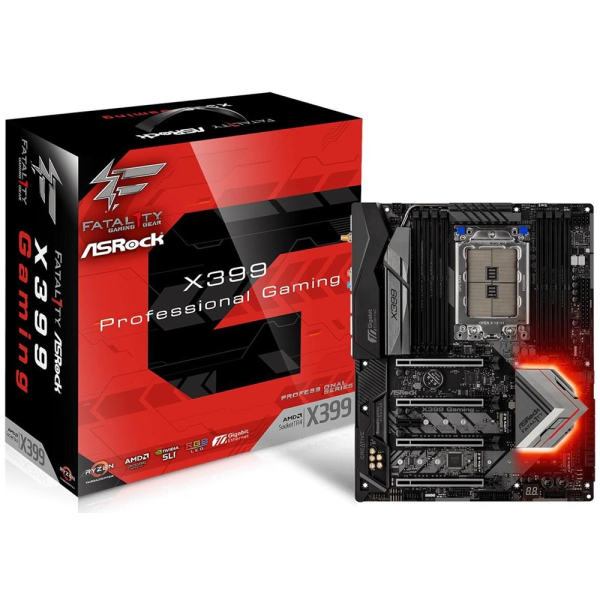

Μητρική ASRock Fatal1ty X399 Professional Gaming sTR4 AMD X399

Τεχνικές προδιαγραφές

Γενικά

Προϊόν : Motherboard - ATX

Chipset : AMD X399

Socket Επεξεργαστή : Socket TR4

Max Processors Qty : 1

Συμβατοί επεξεργαστές : Ryzen ThreadRipper

Υποστηριζόμενη RAM

Μέγιστη : 128 GB

Τεχνολογία : DDR4

Χρονισμός : 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.)

Τύποι υποστηριζόμενης RAM : Non-ECC, ECC

Registered or Buffered : Unbuffered

Χαρακτηριστικά : Quad channel memory architecture

Ήχος

Τύπος : HD Audio (8-channel)

Codec : Realtek ALC1220

Compliant Standards : High Definition Audio, Premium Blu-ray audio support, Purity Sound 4

Δίκτυο

Προσαρμογείς δικτύου : 2 x Intel I211AT / Aquantia AQC107

Τύποι δικτύου : Bluetooth, 10 Gigabit Ethernet, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac

Επεκτασιμότητα / Συνδεσιμότητα

Θύρες Εσωτερικές : 1 x CPU ¦ 8 x DIMM 288-pin ¦ 4 x PCIe 3.0 x16 ¦ 1 x PCIe 2.0 x1 ¦ 1 x M.2 socket

Συσκευές αποθήκευσης : SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 3 x Ultra M.2

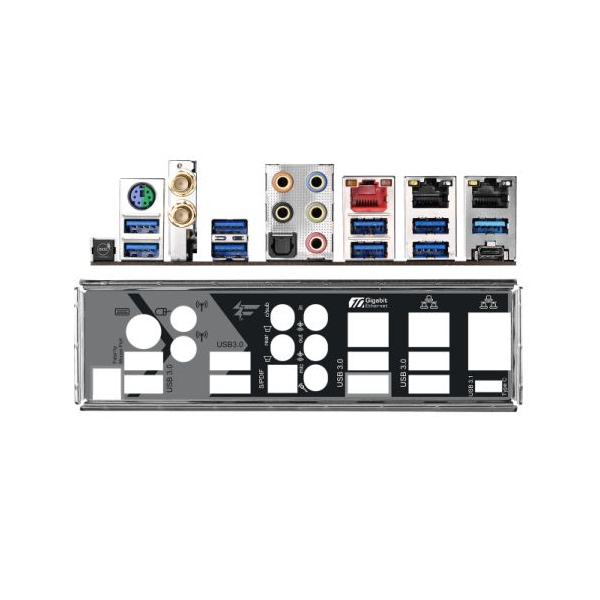

Θύρες εξωτερικές : 1 x PS/2 keyboard / mouse ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x USB-C ¦ 1 x USB 3.1 Gen 2 ¦ 8 x USB 3.1 Gen 1 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (10Gigabit Ethernet)

Επεκτάσεις εσωτερικές : 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 2 x audio - header ¦ 1 x serial - header

Παροχές ενέργειας : 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin PCI Express power connector

Χαρακτηριστικά

BIOS Type : AMI

BIOS Features : JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support

Hardware Monitoring : CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage

Sleep / Wake Up : Wake on LAN (WOL)

Hardware Features : NVIDIA SLI Technology Support, ASRock Instant Flash, NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, 15µ Gold Contact, ASRock APP Charger, ASRock XFast LAN, NVIDIA 4-way SLI Technology Support, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASRock Internet Flash, AMD 4-way CrossFireX technology support, ASRock F-Stream, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, Nichicon Fine Gold Series Audio Capacitors, I/O Armor, ASRock Live Update, ASRock Hyper BCLK Engine II, Matte Black PCB, ASRock Steel Slots, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, ASRock RGB LED, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 11 Phase Digital PWM

Έξτρα

Συμπεριλαμβάνονται : ASRock 3-Way SLI Bridge Card, ASRock 4-Way SLI Bridge Card, 2 x ASRock WiFi 2.4/5GHz Antennas, 3 x M.2 screws, ASRock SLI_HB_Bridge_3S Card

Καλώδια : 4 x Serial ATA cable

Software : Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar

Compliant Standards : FCC, EuP Ready, ErP Ready

Μήκος : 30.5 cm

Πλάτος : 24.4 cm
