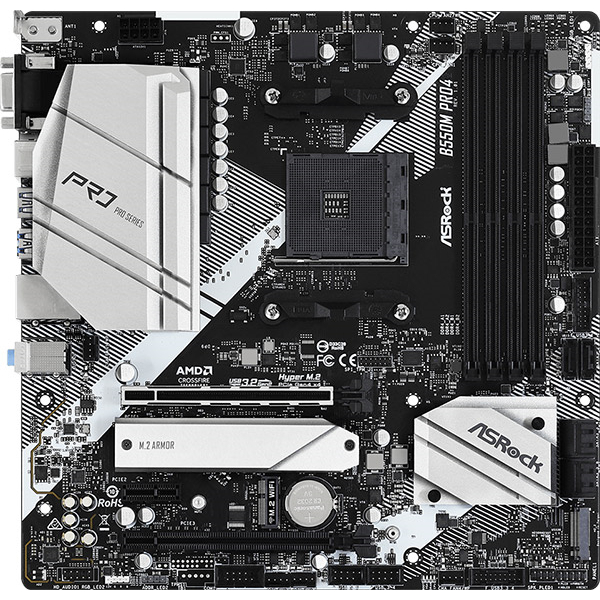

Μητρική ASRock B550M Pro4 Socket AM4 ATX 4xDDR4 SATA 3 USB 3.2
Kωδικός 004990
109.00€
 3%
Τιμή ανά τμχ
105.40€
Μητρική ASRock B550M Pro4 Socket AM4 ATX 4xDDR4 SATA 3 USB
3.2
Τύπος: Micro ATX (24.4 cm x 24.4 cm).
Επεξεργαστές: Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and
5000 Series Desktop Processors.
Chipset: AMD B550.
Μνήμες: 4 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Matisse) support
DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC)
/ 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933
/ 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series
APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC)
/ 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) /
3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC
& non-ECC, un-buffered memory, Max. capacity of system memory: 128GB.
Υποστήριξη δίσκων: 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID
0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 1 x Hyper M.2 Socket (M2_1),
supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with
Matisse) or Gen3x4 (32 Gb/s) (with Renoir), 1 x M.2 Socket (M2_2), supports M
Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2
(16 Gb/s).
Θύρες επέκτασης: AMD Ryzen series CPUs (Matisse): 2 x PCI Express x16
Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode), AMD Ryzen series APUs
(Renoir): 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode),
1 x PCI Express 3.0 x1 Slot, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT
PCIe WiFi module.
Εσωτερικές συνδέσεις: 1 x COM Port Header, 1 x SPI TPM Header, 1 x
Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers,
1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart
Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1
x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
(Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1
ports) (Supports ESD Protection).

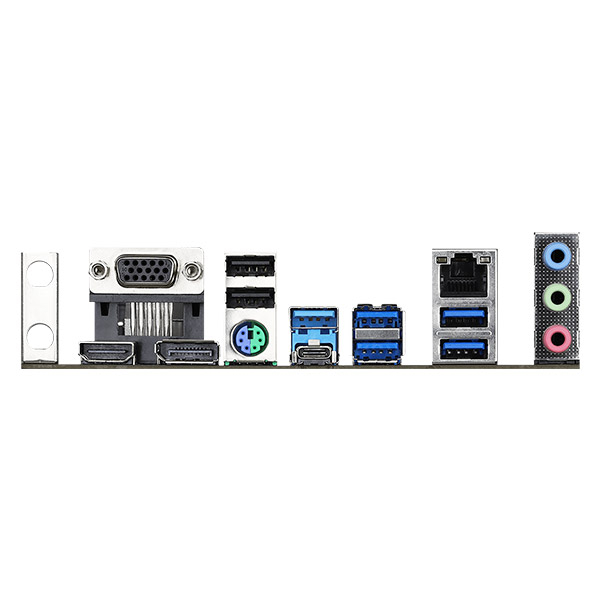

Εξωτερικές συνδέσεις: Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port,
1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port
(10 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
(Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub)
(Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x
RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in /
Front Speaker / Microphone.
Γραφικά: Integrated Graphics Processor.
Ενσωματωμένη κάρτα ήχου: 7.1 CH HD Audio with Content Protection
(Realtek ALC1200 Audio Codec).
Ενσωματωμένη κάρτα δικτύου: PCIE x1 Gigabit LAN 10/100/1000 Mb/s,
Realtek RTL8111H.
Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
Εγγύηση: 3 χρόνια
|
