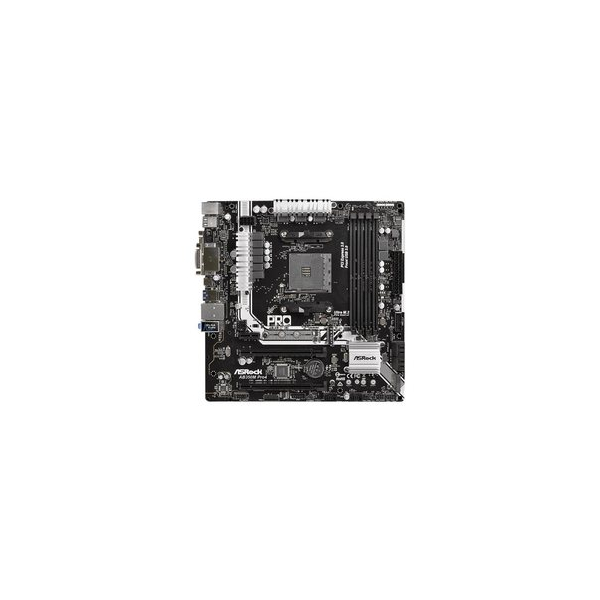

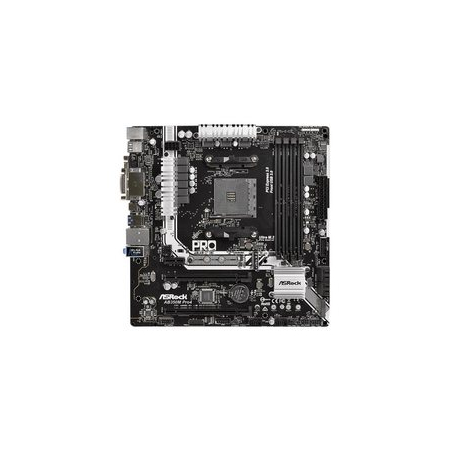

Μητρική ASRock AB350M Pro4 Motherboard micro ATX

Τεχνικές προδιαγραφές

Γενικά

Τύπος : Motherboard - micro ATX
Chipset : AMD B350 FCH
CPU Socket : Socket AM4
Αριθμός CPU : 1
Συμβατοί CPU : Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)

RAM

Μέγιστη RAM : 64 GB
Τεχνολογία : DDR4
Συχνότητα : 2400 MHz, 2133 MHz, 2667 MHz
Υποστηρισόμενη RAM : Non-ECC, ECC
Registered or Buffered : Unbuffered
Χαρακτηριστικά : Dual channel memory architecture

Γραφικά

RAM : 2 GB

Ήχος

Τύπος : HD Audio (8-channel)
Audio Codec : Realtek ALC892
Προδιαγραφές συμμόρφωσης : High Definition Audio, Premium Blu-ray audio support

LAN

Network Controller : Realtek RTL8111GR
Network Interfaces : Gigabit Ethernet

Expansion / Connectivity

Expansion Slots : 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 2.0 x16 (x4 mode (with AMD Ryzen CPU); x2 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 4 x PCIe 2.0 x1
Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2
Interfaces : 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 1 x USB-C ¦ 4 x USB 3.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces : 2 x USB 2.0 - header ¦ 1 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors : 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type : AMI
BIOS Features : JumperFree, SMBIOS 2.3 support, UEFI BIOS
Hardware Monitoring : CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage : Sleep / Wake Up
    Wake on LAN (WOL)
Hardware Features : ASRock Instant Boot, 15µ Gold Contact, ASRock APP Charger, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, Triple Monitor, ELNA Audio Capacitors, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Premium Power Choke, ASRock RGB LED, 9 Phase Power Design

Έξτρα

Αξεσουάρ : I/O back plate, 2 x M.2 screws
Καλώδια : 2 x Serial ATA cable
Λογισμικό : Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar : Compliant Standards
    WHQL, FCC, EuP Ready, ErP Ready
Μήκος : 24.4 cm
Πλάτος : 24.4 cm
