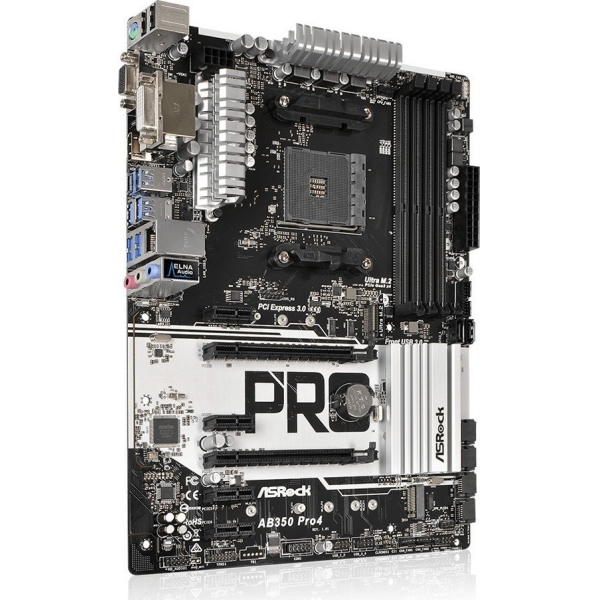

Μητρική ASRock AB350M Pro4 Motherboard ATX

Τεχνικές προδιθαγραφές

Product Type : Motherboard - ATX
Chipset Type : AMD B350 FCH
Processor Socket : Socket AM4
Max Processors Qty : 1
Compatible Processors : Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)

RAM

Max Size : 64 GB
Technology : DDR4
Bus Clock : 2400 MHz, 2133 MHz, 2667 MHz
Supported RAM Integrity Check : Non-ECC, ECC
Registered or Buffered : Unbuffered
Features : Dual channel memory architecture

Γραφικά

Max Allocated RAM Size : 2 GB

Ήχος

Type : HD Audio (8-channel)
Audio Codec : Realtek ALC892
Compliant Standards : High Definition Audio, Premium Blu-ray audio support

LAN

Network Controller : Realtek RTL8111GR
Network Interfaces : Gigabit Ethernet

Επεκτάσεις / Συνδεσιμότητα

Expansion Slots : 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 3.0 x16 (x4 mode (with AMD Ryzen CPU); x2 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 4 x PCIe 2.0 x1
Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2
Interfaces : 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 1 x USB-C ¦ 5 x USB 3.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces : 2 x USB 2.0 - header ¦ 1 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors : 24-pin main power connector, 8-pin ATX12V connector

Χαρακτηριστικά

BIOS Type : AMI
BIOS Features : JumperFree, SMBIOS 2.3 support, UEFI BIOS
Hardware Monitoring : CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up : Wake on LAN (WOL)
Hardware Features : ASRock Instant Boot, 15µ Gold Contact, ASRock APP Charger, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, Triple Monitor, ELNA Audio Capacitors, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Premium Power Choke, ASRock RGB LED, 9 Phase Power Design

Έξτρα

Included Accessories : I/O back plate, 2 x M.2 screws
Cables Included : 2 x Serial ATA cable
Software Included : Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar
Compliant Standards : WHQL, FCC, EuP Ready, ErP Ready
Width : 30.5 cm
Depth : 22.4 cm
