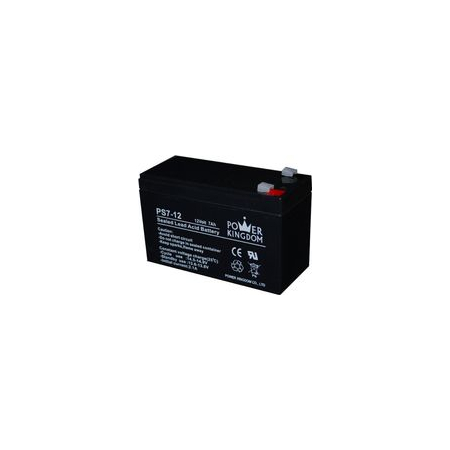

Μπαταρία μολύβδου  12 Volt 7Ah

Nominal Voltage 12V
Rated Capacity 7Ah
Total Height 3.98 inches (101mm)
Height 3.74 inches (95mm)
Length 5.94 inches (151mm)

Dimensions

Width 2.56 inches (65mm)
Approximate Weight 4.52 lbs. (2.05kg)
Characteristic
20h rate 7.00Ah
10h rate 6.50Ah
5h rate 5.95Ah
1h rate 4.20Ah

Capacity

770F(250C)
15 min rate 3.15Ah

Internal Resistance

Full Charged Battery 770F(250C) 25mΩ 1040F(400C) 102%  770F(250C) 100% 320F(00C) 85%

Capacity

Affected by Temperature
(20h rate) 50F(-150C) 65%
3 month storage 90%
6 month storage 80%

Self-Discharge 680F(200C)
(Capacity after) 12 month storage 60%

Max. Discharge

Current 770F(250C) 105A(5s)
Terminal  T2, Cycle
14.5~14.9V(-24mV/0C)
max. current: 2.1 A
Charge (Constant Voltage,250C)
Float 13.6~13.8V(-18mV/0C)
