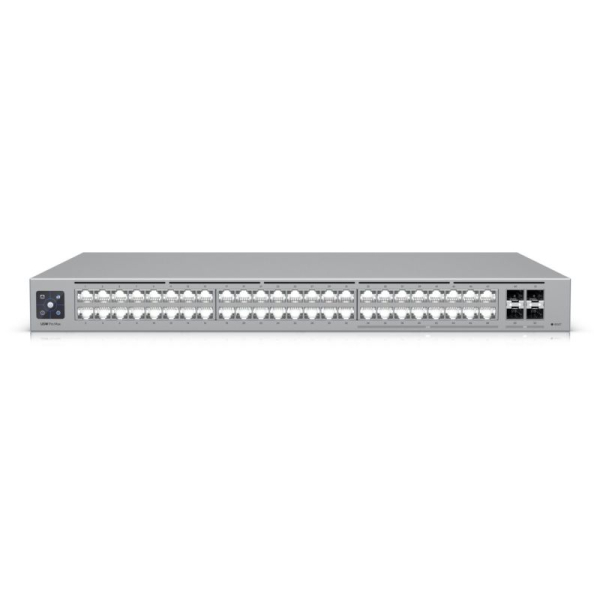

Ubiquiti UniFi Switch Pro Max 48 M RM
A 48-port, Layer 3 Etherlighting™ switch with 2.5
GbE.
• Etherlighting™ ports that illuminate to indicate port location,
speed/link, and native VLAN/network*
• (16) 2.5 GbE RJ45
ports
• (32) GbE RJ45 ports
• (4) 10G SFP+ ports
• DC
power backup ready
• Managed with UniFi Network 8.0.24 and
later
*Pair with UniFi Etherlighting Patch Cables for optimal
brightness.
Key features
• Backup DC power
supply
• Configurable via UniFi Controller
• High connection
speed - 16 LAN ports at 2.5 Gbps and 32 LAN ports at 1 Gbps
• 4 SFP+
ports up to 10 Gbps
Package contents
• Device
• Power
cable
• Rack mounting kit
| Specifications | |
| Mechanical | |
| Dimensions | 442 x 325 x 44 mm |
| Weight | Without mounting brackets: 4.8 kg With mounting brackets: 4.9 kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports |
| Total Non-Blocking Throughput |
112 Gbps |
| Switching Capacity | 224 Gbps |

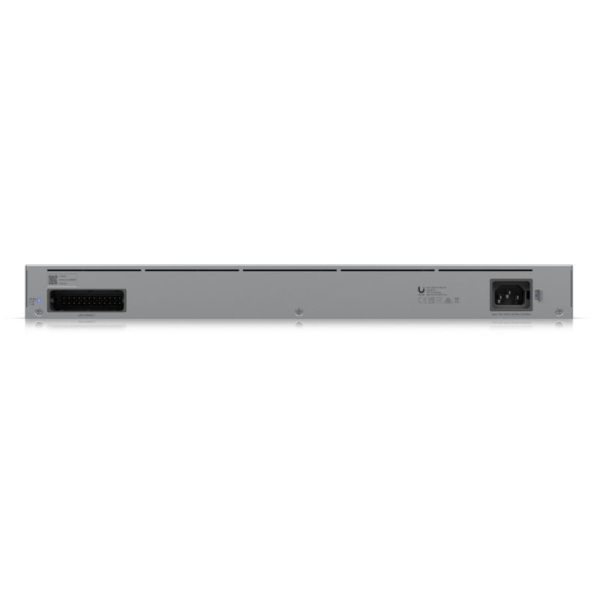

| Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power Supply | AC/DC, Internal, 100W |
| Max Power Consumption | 100W |
| Supported voltage range | 100—240V AC |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C |
| Ambient operating humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks |
| Etherlighting | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
