LONGSE XVR υβριδικό καταγραφικό XVRT3004HD H.265/H.264 4+2 IP κανάλια
LONGSE XVR υβριδικό καταγραφικό XVRT3004HD H.265/H.264 4+2 IP κανάλιαLONGSE XVR υβριδικό καταγραφικό XVRT3004HD H.265/H.264 4+2 IP κανάλιαLONGSE XVR υβριδικό καταγραφικό XVRT3004HD H.265/H.264 4+2 IP κανάλιαLONGSE XVR υβριδικό καταγραφικό XVRT3004HD H.265/H.264 4+2 IP κανάλια
LONGSE XVR υβριδικό καταγραφικό XVRT3004HD H.265/H.264 4+2 IP κανάλια
Kωδικός 005266
Δειτε όλα τα προϊόντα της LONGSE
Προσωρινά μή διαθέσιμο
80.00€
Web Price 21%
 Τιμή ανά τμχ 62.90€

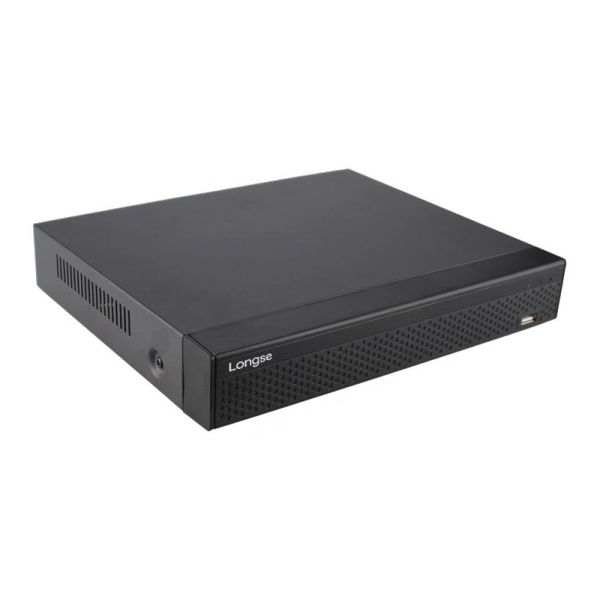

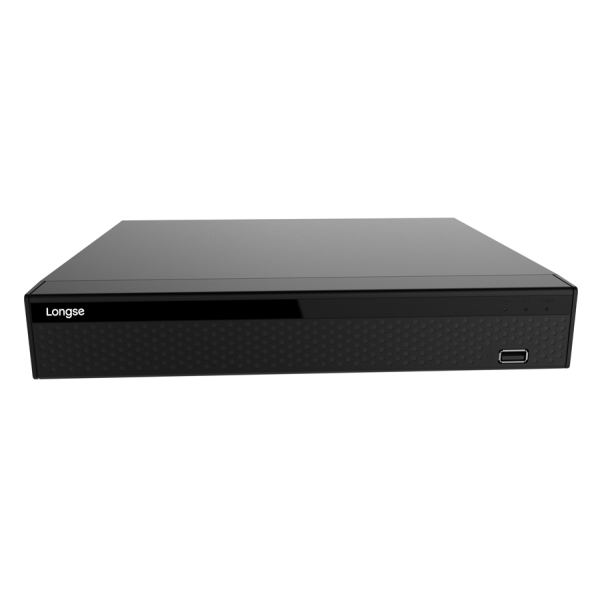

LONGSE XVR υβριδικό καταγραφικό XVRT3004HD, H.265/H.264, 4+2 IP κανάλια

Υβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog), με υποστήριξη έως και 4 καναλιών HD ή 16 καναλιών IP. Επιπλέον υποστηρίζει ανάλυση καταγραφής HD 4K και IP 5MP αλλά και HDD έως 8ΤΒ.
Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια

-support AHD/CVI/TVI/IP/Analog camera input
-up to HD 4K and IP 5MP resolution recording
-support HD output, VGA and CVBS video output
-support max. 4CH HD or 16CH IP camera input
-support 1 SATA up to 8TB capacity

Συμβατές εφαρμογές:

Android
https://play.google.com/store/apps/details?id=com.gzch.lsplat.bitdog&hl=el

IOS
https://apps.apple.com/us/app/bitvision/id1419463554

PC
http://www.herospeed.net/en/index.php?m=content&c=index&a=lists&catid=10

WEB Browser
www.bitvision.app

Τεχνικά χαρακτηριστικά
Main Processor: MC6630
Operating System: Embedded LINUX
Video
Input: Normal Mode: Default: 4*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H) +2*IPC(Max5MP), Analog+Network: 2*(AHD/TVI/CVI:8M;AHD/TVI:5M,AHD/TVI/CVI:4MP/3MP/2MP/720P/960H) +7*IPC(MAX 5MP), Lite Mode: Default: 4*(TVI/AHD/CVI: 5M @12fps; AHD/TVI/CVI: 4M @15fps; AHD/TVI/CVI: 3M @18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+2*network(MAX 5MP), Analog+Network: 2*Analog(TVI/AHD/CVI: 5M @12fps; AHD/TVI/CVI:4M @15fps; AHD/TVI/CVI: 3M @18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+7*network(MAX 5MP), Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ?48M)

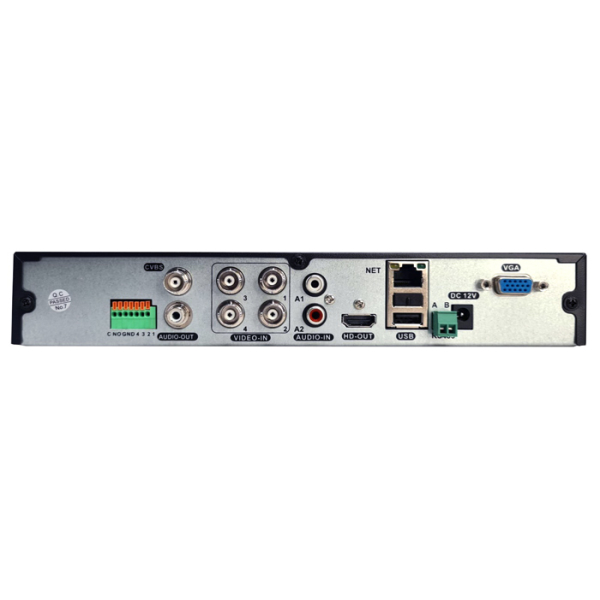

Input: 4CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HD,1 VGA, 1 CVBS
Audio:
Input: 2 Channel RCA , support AOC
Two-way Audio: NO
Output: 1 Channel, RCA
Alarm:
Sensor Input: 4 CH
Output: 1 CH
Motion Detection: 4 Channel(max 16 Channel in pure network mode)
Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email Alarm: Send Image to The Designated E-mail
PTZ:
Interface: RS485
Protocol: Pelco-D, Pelco-P
Baud Rate: 110~921600
Address: 0~255
Display:
VGA Resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
HD Output: Resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,1024 x 768/60Hz
Display Split: 16 Channel/9 Channel/4 Channel / 1Channel
Privacy Masking: 3 Rectangular Zones (Each camera)
OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording:
Video Compression: H.265/H.265+/H.264/H.264+
Audio Compression: G.711U/G.711A
Resolution: 5MP(2592x1944), 8MP_LITE(1920x2160), 5MP_HALF(1296x1944), 4MP(2560x1440), 4MP_HALF(1280x1440), 3MP(2048x1536), 3MP_Lite(1024x1536), 1080P(1920x1080), 720P(1280x720), 960H(P:960x576/N:960x480)
Video Quality: Lowest/Low/Ordinary/Good/Better/Best
Record Rate: Normal Mode: Analog: PAL:8MP_LITE(1920x2160 4*8fps), 5MP(2592x1944 4*6fps), 5MP_HALF(1296x1944 4*10fps), 4MP(2560x1440 4*8fps), 4MP_HALF(1280x1440 4*15fps), 3MP(2048x1536 4*9fps), 3MP_Lite(1024x1536 4*18fps), 1080P(1920x1080 4*15fps), 720P(1280x720 4*25fps), 960H(960x576
4*25fps), NTSC:8MP_LITE(1920x2160 4*8fps), 5MP(2592x1944 4*6fps), 5MP_HALF(1296x1944 4*10fps), 4MP(2560x1440 4*8fps), 4MP_HALF(1280x1440 4*15fps), 3MP(2048x1536 4*9fps), 3MP_Lite(1024x1536 4*18fps), 1080P(1920x1080 4*15fps), 720P(1280x720 4*25fps), 960H(960x480 4*25fps) Lite Mode: PAL:5MP_Lite(1296x1944 4*10fps), 4MP_Lite(1280x1440 4*15fps), 3MP_Lite(1024x1536 4*18fps), 1080N(960x1080 4*25fps), 720P(1280x720 4*25fps), 960H(960x480 4*25fps) NTSC: 5MP_Lite(1296x1944 4*10fps), 4MP_Lite(1280x1440 4*15fps), 3MP_Lite(1024x1536 4*18fps), 1080N(960x1080 4*25fps), 720P(1280x720 4*25fps), 960H(960x480 4*30fps) Pure IP(H.265): PAL: 5MP @8x25fps, 4MP @12x25fps, 3MP @12x25fps, 1080P @16x25fps, 960P @16x25fps, 720P @16x25fps, D1 @16x25fps NTSC: 5MP @8x30fps, 4MP @12x30fps, 3MP @12x30fps, 1080P @16x30fps, 960P @16x30fps, 720P @16x30fps, D1 @16x30fps
Record Mode: Manual\Timer\Motion Detection\Alarm Input
Playback & Backup:
Decode Capability: 2CH 1080P @30fps
Sync Playback: Normal Mode: Pure Analog: 4CH 5M @6fps, 4CH 8M_Lite @8fps, 4CH 4M @8fps, 4CH 3M @9fps, 3CH 1080p @15fps Mix Mode: 1CH 5M @30fps, 1CH 4M @30fps, 1CH 3M @30fps, 2CH 1080P @30fps Pure IPC: 1CH 5MP @30fps, 1CH 4MP @30fps, 1CH 3M @30fps, 2CH 1080P @30fps Lite Mode: Pure Analog:4CH 5M_LITE @10fps,CH 4M_LITE @15fps,3M_LITE @18fps,4CH 1080N @25fps Mix Mode: 1CH 5M @30fps, 1CH 4M @30fps, 1CH 3M @30fps, 2CH 1080P @30fps Pure IPC: 1CH 5MP @30fps, 1CH 4MP @30fps, 1CH 3M @30fps, 2CH 1080P @30fps
Remote Playback: 4 Channel / 1Channel
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
Smart Phone: Playback 4 Channel
Backup Mode: USB Device(with fomat FAT 32 )/Network/FTP
Network:
Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support Windows 7/ Windows 8/Windows 10
Extra Stream: CIF/D1(1-30fps)
Smart Phone: iPhone, ipad, Android ,Android pad
Hard Disk Driver:
Interface Type: 1 SATA Interface
Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General:
Language: Simplified Chinese, Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
UTC Control: YES
USB Interface: 2 USB 2.0 Interfaces
Power consumption: DC 12V/2A ?6W (Without Hard Disk)
Working Environment: -10~55°C/10~90%

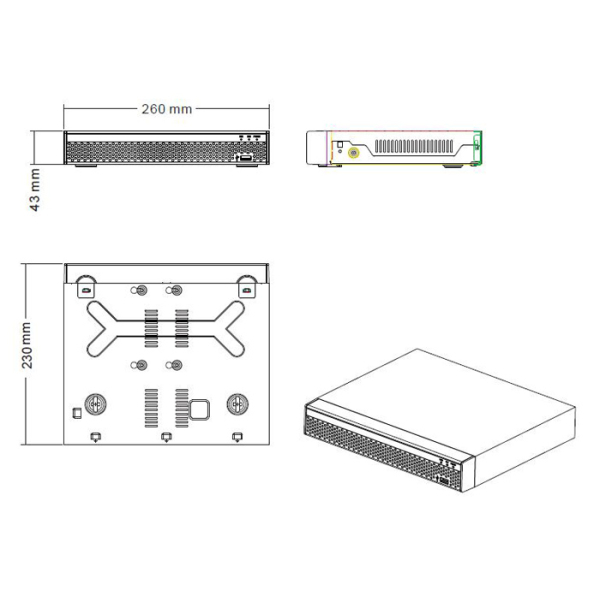

Dimension (WxDxH): 260x215x43(mm)
Weight: 2kg (Without HDD)

Περιεχόμενα συσκευασίας
XVR καταγραφικό
Ενσύρματο ποντίκι
Αντάπτορας τροφοδοσίας
Βίδες
Εγχειρίδιο χρήσης
