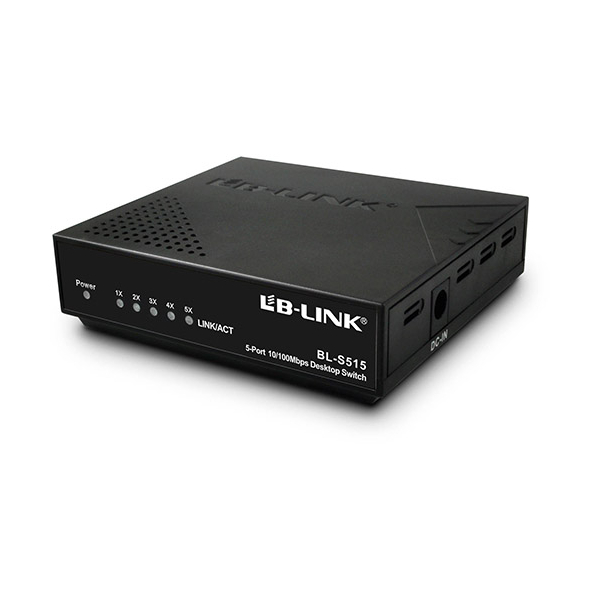

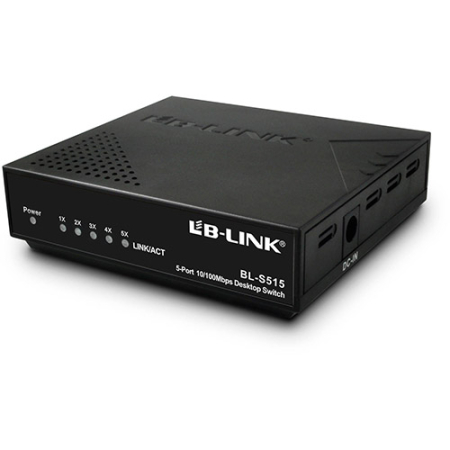

26%Switch LB-Link 5 ports BL-S515 10/100Mbps
Provides

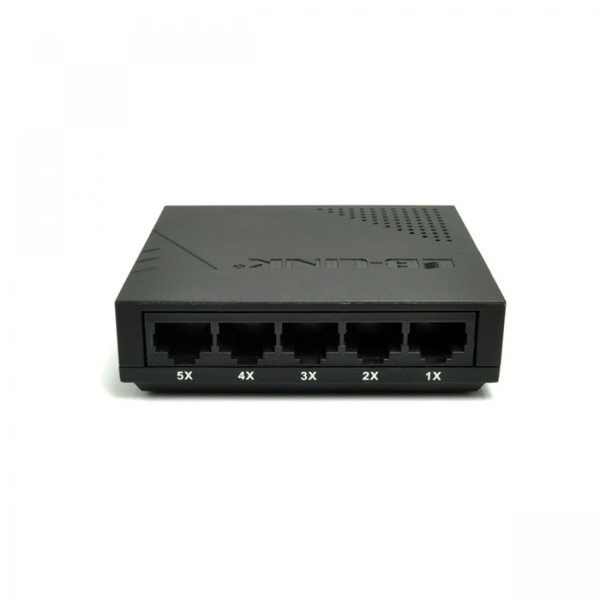

5 pieces 10/100Mbps self adaptive RJ45 ports
Store and forward mechanism full
speed exchange without block
Supports auto MDI/MDIX convenience to
use
Supports MAC self-learning
LED indicators dynamically display link
information and running status
Description
BL-S515
provides 5 pieces 100Mbps RJ45 ports,its
full duplex transmission rate for each port can reach up to 200Mbps. All ports
support auto negotiation of 10/100 Mbps of full and half duplex,and
support auto MDI/MDIX function,it
can directly connect with other network device. It is plug and play,easy
to install and use. On the front panel,there
are a set of indicators which dynamically display link of corresponding
port,such
as connection and transmission data information,to
conveniently check out the status of itself and client
device.
|
Standard |
IEEE802.3
802.3u ,
,802.3x,
CSMA/CD,TCP/IP |
|
Basic
function |
Line
speed exchange |
|
MAC
self-learning | |
|
Support
IEEE 802.3X flow control in full duplex mode | |
|
Support
back pressure flow control in half duplex mode | |
|
Backplane
Bandwidth |
1Gbps |
|
MAC
address table |
1k |
|
Packet
Forwarding |
14880pps(10BASE-T) |
|
148800pps(100BASE-TX) | |
|
Forwarding
Mode |
Store
and forward |
|
Port |
5
pieces 10/100Mbps self adaptive RJ45 ports(Auto
MDI/MDIX) |
|
Cable |
10BASE-T:3
4 5 or above class crossover Ethernet cable(MAX
250m) |
|
EIA/TIA-568
100u straight through cable(MAX
250m) | |
|
100BASE-Tx:4,5
or above class crossover Ethernet cable(MAX
150m) | |
|
EIA/TIA-568
100u straight through cable(MAX
150m) | |
|
LED
indicators |
Power
indicator,ports
indicator (Link/Act) |
|
Operating environment |
Operating temperature:0 |
