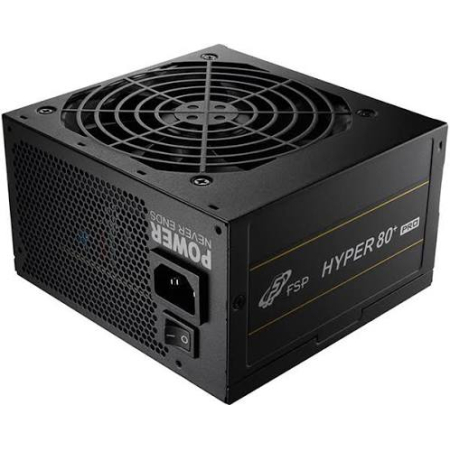

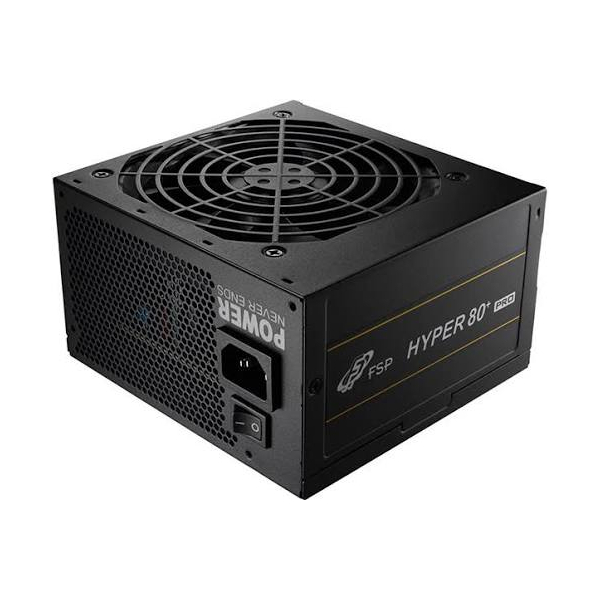

PSU 650W FSP Hyper PRO 80+

Technical details
Sustainability compliance Y
Sustainability certificates ErP
Design
Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Illumination N
80 PLUS certification 80 PLUS White
ATX version 2.52
EPS version 2.92
Certification IEC 62368
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 1.46 kg
Ports & interfaces
Motherboard power connector 24-pin ATX
Number of SATA power
connectors
8
Peripheral (Molex) power
connectors (4-pin)
2
EPS power connector (8-pin) Y
EPS power connector (4+4 pin) Y
PCI Express power connectors
(6+2 pin)
2
Floppy drive power connector 1
Floppy disk drive connector Y
Cabling type Modular
Power
Total power 650 W
AC input voltage 200 - 240 V
AC input frequency 50 - 60 Hz
Input current 5 A
Power factor 0.9
Power Factor Correction (PFC)
type
Active
Combined power (+3.3V) 100 W
Combined power (+12V) 649.2 W
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+12V) 54.1 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Hold time 17 ms
Efficiency 85%
Power protection features Over current, Over power, Over
voltage, Short circuit
