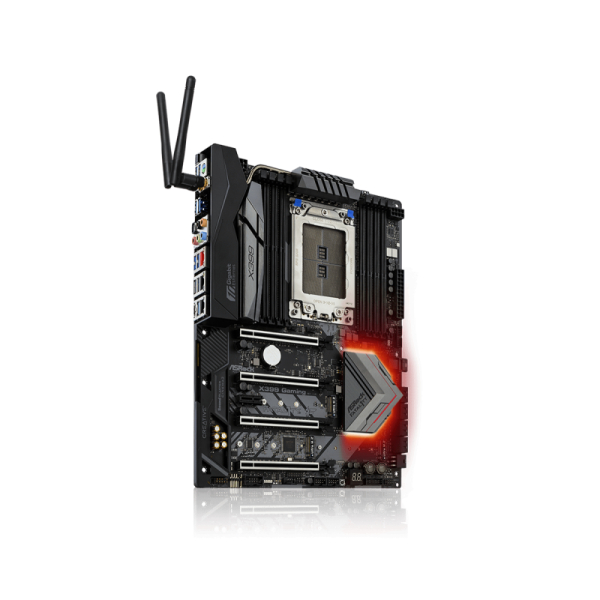

Motherboard ASRock Fatal1ty X399 Professional Gaming sTR4 AMD X399

Technical description

General

Product Type : Motherboard - ATX

Chipset Type : AMD X399

Processor Socket : Socket TR4

Max Processors Qty : 1

Compatible Processor : Ryzen ThreadRipper

Supported RAM

Max Size : 128 GB

Technology : DDR4

Bus Clock : 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.)

Supported RAM Integrity Check : Non-ECC, ECC

Registered or Buffered : Unbuffered

Features : Quad channel memory architecture

Audio

Type : HD Audio (8-channel)

Audio Codec : Realtek ALC1220

Compliant Standards : High Definition Audio, Premium Blu-ray audio support, Purity Sound 4

LAN

Network Controller : 2 x Intel I211AT / Aquantia AQC107

Network Interfaces : Bluetooth, 10 Gigabit Ethernet, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac

Expansion / Connectivity

Expansion Slots : 1 x CPU ¦ 8 x DIMM 288-pin ¦ 4 x PCIe 3.0 x16 ¦ 1 x PCIe 2.0 x1 ¦ 1 x M.2 socket

Storage Interfaces : SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 3 x Ultra M.2

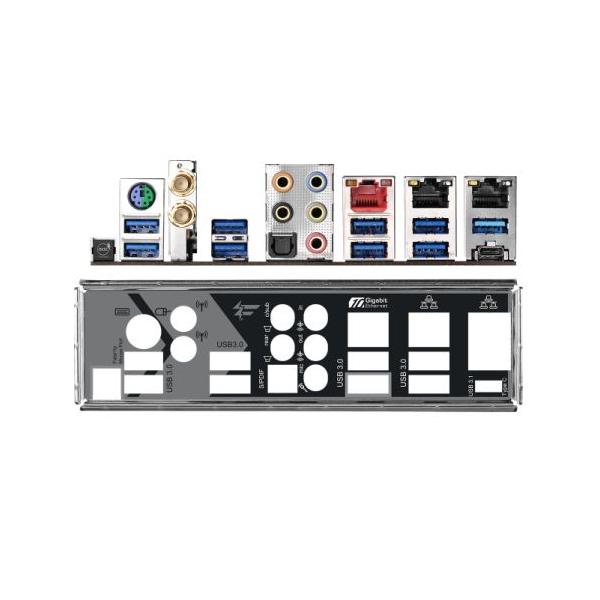

Interfaces : 1 x PS/2 keyboard / mouse ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x USB-C ¦ 1 x USB 3.1 Gen 2 ¦ 8 x USB 3.1 Gen 1 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (10Gigabit Ethernet)

Internal Interfaces : 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 2 x audio - header ¦ 1 x serial - header

Power Connectors : 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin PCI Express power connector

Features

BIOS Type : AMI

BIOS Features : JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support

Hardware Monitoring : CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage

Sleep / Wake Up : Wake on LAN (WOL)

Hardware Features : NVIDIA SLI Technology Support, ASRock Instant Flash, NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, 15µ Gold Contact, ASRock APP Charger, ASRock XFast LAN, NVIDIA 4-way SLI Technology Support, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, ASRock Internet Flash, AMD 4-way CrossFireX technology support, ASRock F-Stream, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, Nichicon Fine Gold Series Audio Capacitors, I/O Armor, ASRock Live Update, ASRock Hyper BCLK Engine II, Matte Black PCB, ASRock Steel Slots, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, ASRock RGB LED, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 11 Phase Digital PWM

Miscellaneous

Included Accessories : ASRock 3-Way SLI Bridge Card, ASRock 4-Way SLI Bridge Card, 2 x ASRock WiFi 2.4/5GHz Antennas, 3 x M.2 screws, ASRock SLI_HB_Bridge_3S Card

Cables Included : 4 x Serial ATA cable

Software Included : Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar

Compliant Standards : FCC, EuP Ready, ErP Ready

Width : 30.5 cm

Depth : 24.4 cm
