Home » Network & Security » Switches » Ubiquiti UniFi Switch Pro HD 24

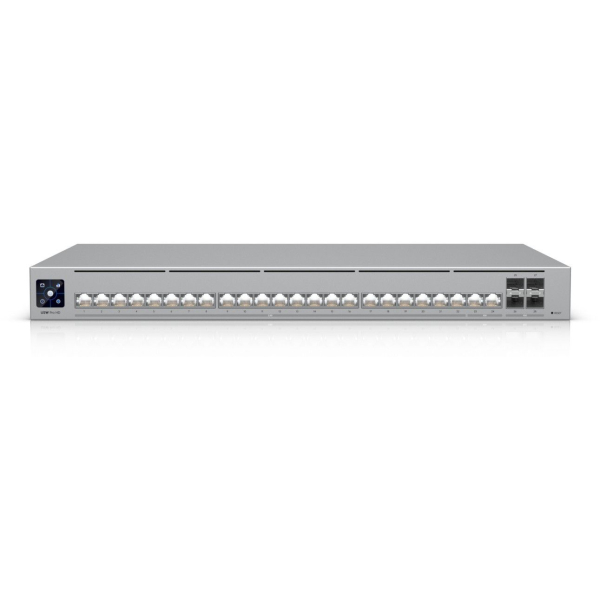

Ubiquiti UniFi Switch Pro HD 24
New
Ubiquiti UniFi Switch Pro HD 24Ubiquiti UniFi Switch Pro HD 24Ubiquiti UniFi Switch Pro HD 24
Ubiquiti UniFi Switch Pro HD 24
USW-Pro-HD-24
Code 005977
Show all the products of UBIQUITI
After ordering in 1-3 days
919.00€
Web Price 8%
 Price per piece848.20€

Ubiquiti UniFi Switch Pro HD 24

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.

Specifications
Dimensions 442 x 400 x 44 mm
Weight Without Mount: 4.47 kg
With Mount: 4.57 kg
Port Layout
2.5 GbE RJ45
22 (All PoE++) (2.5G/1G/100M/10M)

10 GbE RJ45
2 (All PoE++) (10G/5G/2.5G/1G/100M)

10G SFP+
4 (10G/1G)
Max. PoE Output Up to PoE++
Total PoE Availability 600W
Redundancy DC Power Backup
Layer 3 Yes
Form Factor Rack mount (1U)
Etherlighting™ Yes
Performance
Switching Capacity 230 Gbps
Total Non-Blocking Throughput 115 Gbps
Forwarding Rate 171 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size
ARP Entries
12,000

IPv4 Routes
12,000
Packet Buffer Size 2 MB
Hardware
PoE Ports
PoE++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W

PoE+
30W

PoE++
64W
Max. Power Consumption 60W (Excluding PoE Output) 660W (Including PoE Output)
Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method AC input
Power Supply AC/DC, internal, 660W
Supported Voltage Range 100—240V AC
Management Ethernet AR
Weight Without mounting brackets: 6.2 kg
With mounting brackets: 6.3 kg
Enclosure Material SGCC steel
Mount Material SGCC steel
LCM Display 1.3" touchscreen
Ambient Operating Temperature -5 to 40° C
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™
Ethernet
SFP+
Certifications CE, FCC, IC
NDAA Compliant Yes
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
