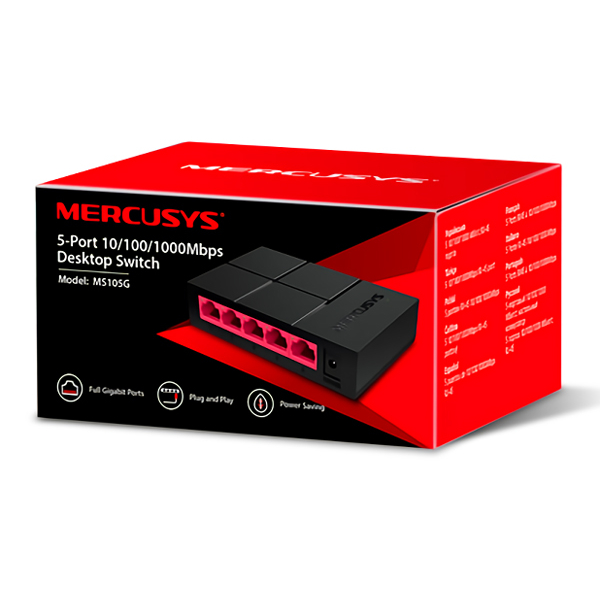

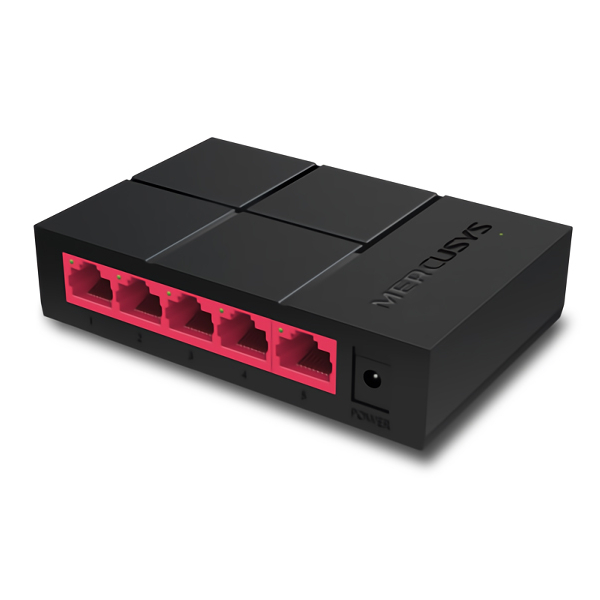

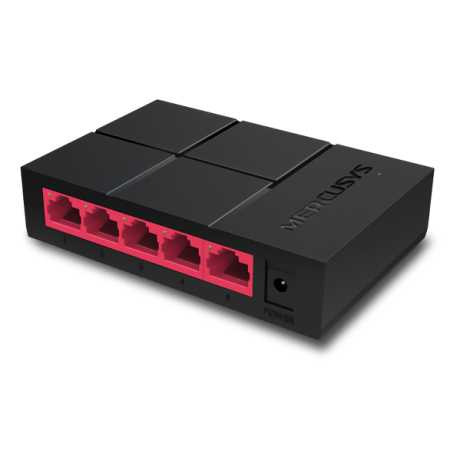

MERCUSYS Desktop Switch MS105G 5x 10/100/1000 Mbps Ver. 1
-Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX
supported
-Easily wired network expansion
-Compact design for flexible
arrangement
-Plug and play setup, no configuration required
-Green
Ethernet technology saves power by up to 82%
Specifications:
Interfaces: 5x 10/100/1000Mbps Ports, Auto-Negotiation,
Auto-MDI/MDIX
LED: Ethernet Ports (1, 2, 3, 4, 5), Power
External Power
Supply: 5V/0.6A
Dimensions (W X D X H): 105 x 70 x 24.9 mm
Standards and
Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates:
10/100/1000 Mbps at Half Duplex, 20/200/2000 Mbps at Full Duplex
Buffer
Capacity: 512 Kbit
Jumbo Frame: 9 KB
Transfer Method: Store and
Forward
Package Contents
