8%Router Ubiquiti UniFi Dream Machine Pro
UniFi Dream Machine Pro - All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks.

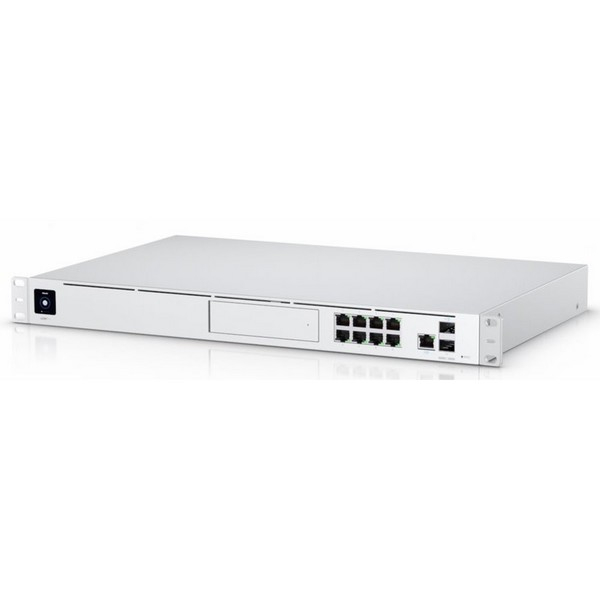

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
Features
All-in-one 1U rack appliance for small to medium
sized businesses
Combines new UniFi OS with 8-port switch and security
gateway
UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD
support
8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+
LAN
Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
Powered by
fast 1.7 GHz quad-core processor
UniFi Enterprise Architecture Evolves with UniFi OS
The
new UniFi Cloud portal provides simple access to all controllers and an
increasing number of UniFi applications.
Seamless Network Integration
Use the UniFi Dream Machine
Pro as your network controller.
| Specifications | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm |
| Weight With Brackets | 3.99 kg |
| Networking Interfaces | 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port |
| Management | Ethernet In-Band (1) Bluetooth BLE |
| IDS/IPS Throughput | 3.5 Gbps* |
| Processor | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | 16 GB |
| Maximum Power Consumption | 33W |
| Supported Voltage Range | 100 - 240VAC |
| Power Method | (1) Universal AC Input, 100-240VAC, 50/60 Hz (1) RPS DC Input |
| Power Supply | Internal 50W/12V |
| LEDs | |
| HDD | Activity |
| RJ45 | Link/Speed/Activity |
| SFP+ | Link/Speed/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |

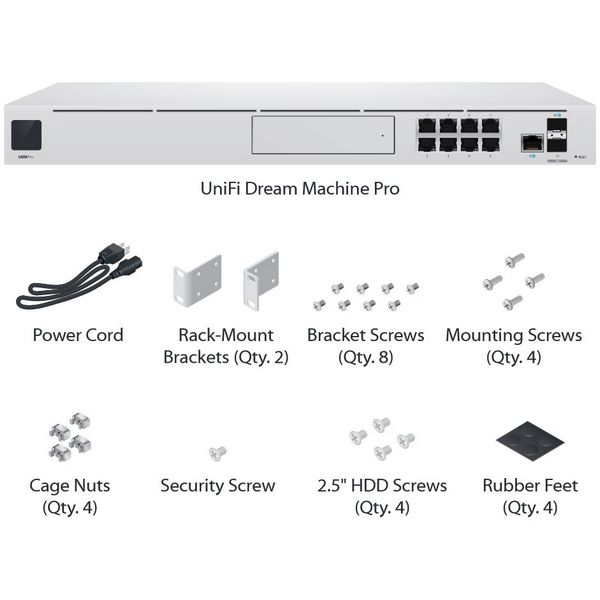

| Package Contents: |
|---|
| 1 x UniFi Dream Machine Pro |
| 2 x Rackmount ears |
| 8 x Bracket Screws |
| 4 x Mounting Screws |
| 4 x Cage Nuts |
| 1 x Security Screw |
| 4 x 2.5" HDD Screws |
| 1 x Power Cord |
| 4 x Rubber Feet |
| 1 x Power cord |
