Access Point Ubiquiti Unifi U6-LR Wifi-6 2.4GHZ/600MBPS 5GHZ/2400MBPS

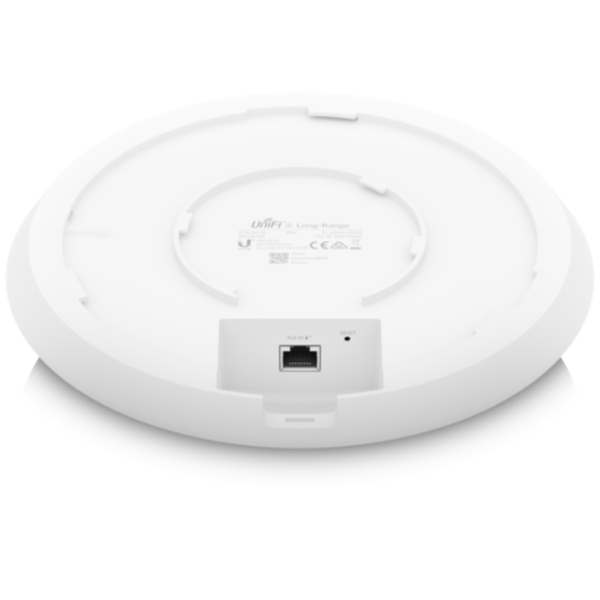

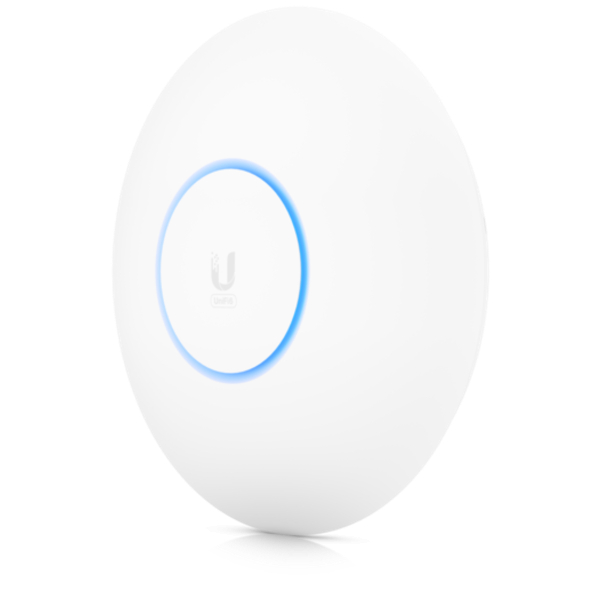

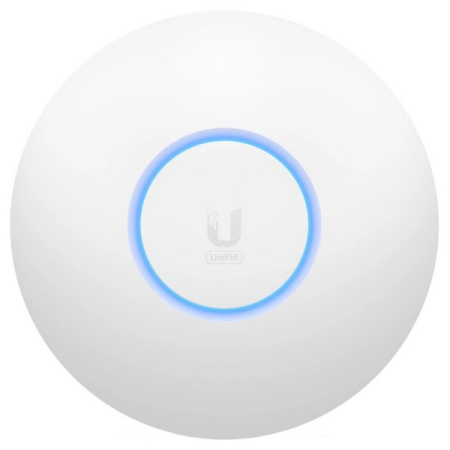

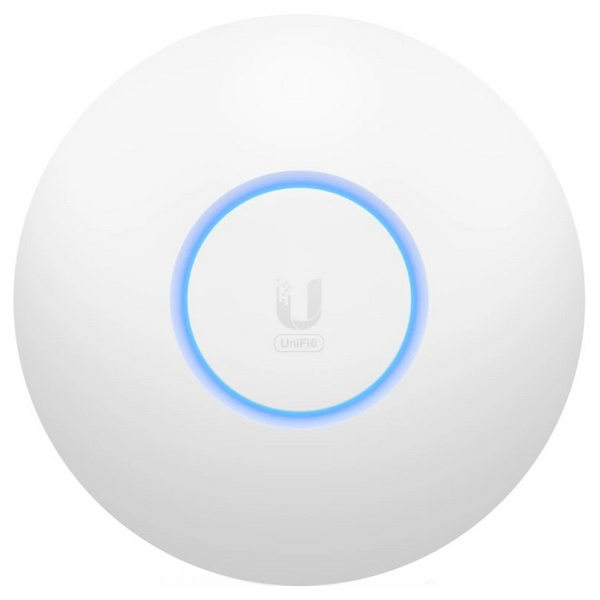

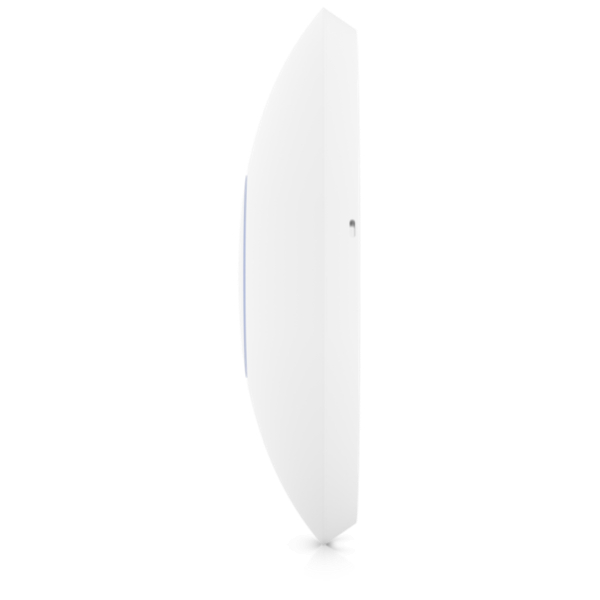

UniFi 6 Long-Range Access Point
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios.
The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
- 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
MECHANICAL
Dimensions
O220 x 48 mm
Weight
Without Mount: 800 g
With Mount: 930
g
Enclosure Material
Plastic
Mounting Material
SGCC Steel
Weatherproofing
IP54
HARDWARE
Processor Specs
Dual-Core® Cortex® A53 at 1.35 GHz
Memory Information
512 MB
Management Interface
Ethernet
Networking Interface
(1) 1 Gbps Ethernet RJ45
Button
Factory Reset
LEDs
RGB
Power Method
PoE+, Passive PoE (48V)
Power Supply
UniFi PoE Switch
48V, 0.5A PoE Adapter (Not Included)
Supported Voltage Range
44 to 57VDC
Max. Power Consumption
16.5W
Max. TX Power
26 dBm @ 2.4 GHz
26 dBm @ 5 GHz
MIMO
4 x 4 @ 2.4 GHz
4 x 4 @ 5 GHz
Throughput Speeds
600 Mbps @ 2.4 GHz
2400 Mbps @ 5
GHz
Antenna Gain
4 dBi @ 2.4 GHz
5.5 dBi @ 5 GHz
Mounting
Wall/Ceiling (Kits Included)
Operating Temperature
-30 to 60° C
Operating Humidity
5 - 95% Noncondensing
Certifications
CE, FCC, IC
SOFTWARE
Wi-Fi Standards
802.11a/b/g, Wi-Fi 4/5/6
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
BSSID
8 per Radio
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Trafc Isolation
Supported
Concurrent Clients
300+
SUPPORTED DATA RATES (MBPS)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT
20/40/80/160)
802.11ax (Wi-Fi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE
20/40/80/160)
| Package Contents: |
|---|
| 1 x U6-LR |
| 1 x Wall Mounting Kit |
