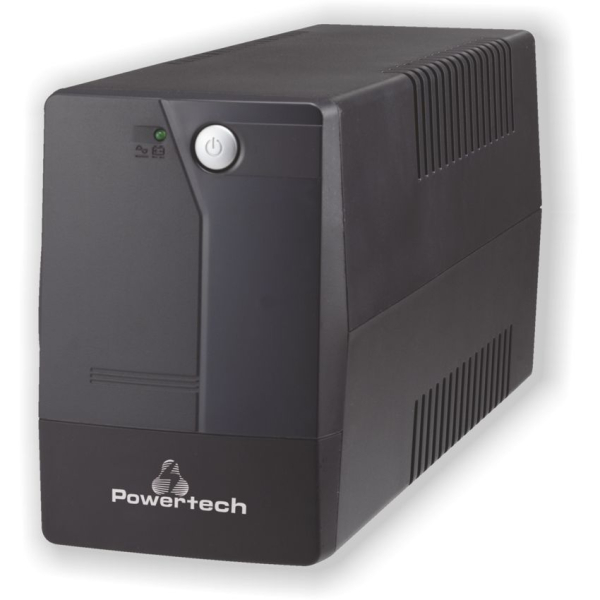

UPS Line Interactive PowerTech PT-1050 1050VA 630W - 2 Schuco
UPS Line Interactive PowerTech PT-1050 1050VA 630W - 2 SchucoUPS Line Interactive PowerTech PT-1050 1050VA 630W - 2 Schuco
UPS Line Interactive PowerTech PT-1050 1050VA 630W - 2 Schuco
Code 003863
Show all the products of POWERTECH
Temporary Unavailable
72.00€
Web Price 2%
 Price per piece70.90€

UPS Line Interactive PowerTech PT-1050 1050VA 630W - 2 Schuco

Technical Specifications

Model : PT-1050
Capacity 1050 VA / 630 W


INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC / 162-290 VAC
Frequency Range 60/50 Hz (auto sensing)


OUTPUT
Frequency Range (Batt. Mode) ± 10%
Waveform (Batt. Mode) 50 Hz or 60 Hz ± 1 Hz
Transfer Time Typical 2-8 ms
AC Voltage Regulation Simulated Sine Wave


BATTERY
Battery Type & Number  12 V/9 Ah x 1
Typical Recharge Time 4 hours up to 90% capacity


PROTECTION
Full Protection Overload, discharge, and overcharge protection


INDICATORS
AC Mode Green lighting
Battery Mode Green Flashing


ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding


PHYSICAL
Dimension, D x W x H (mm) 279 x101 x142
Net Weight (kgs) 4.2 4.9


ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 40dB
