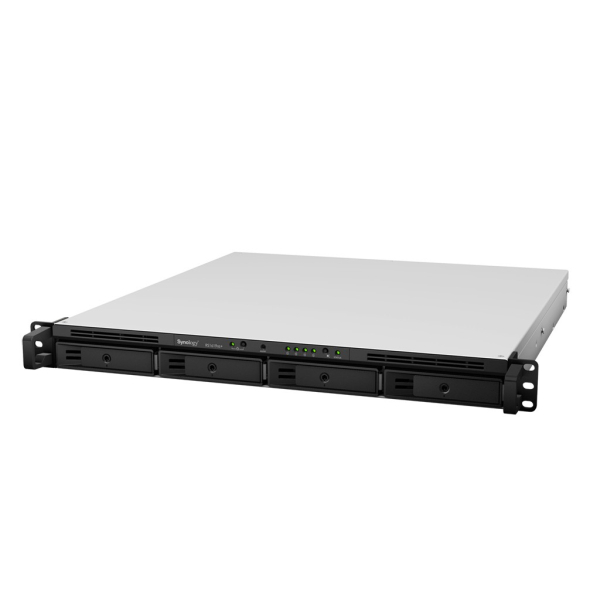

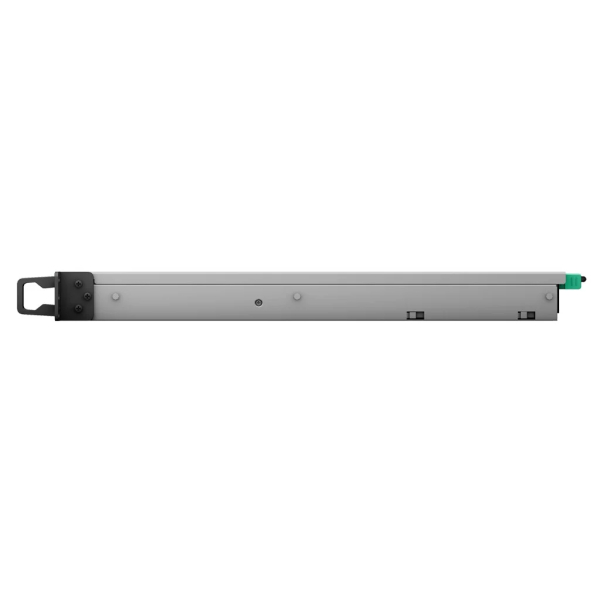

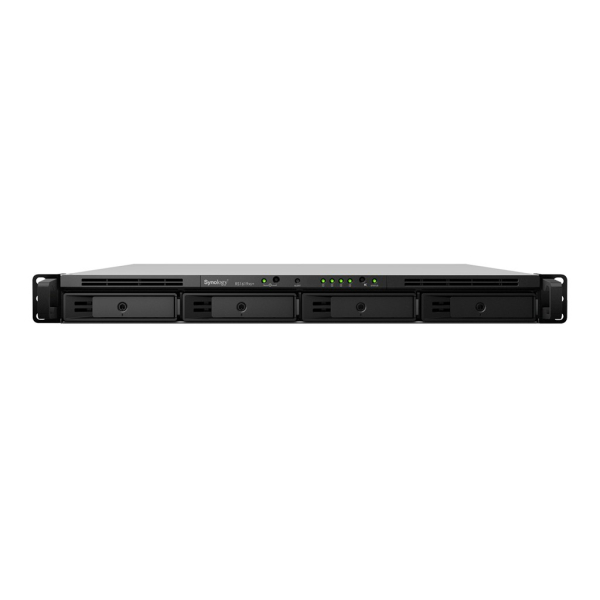

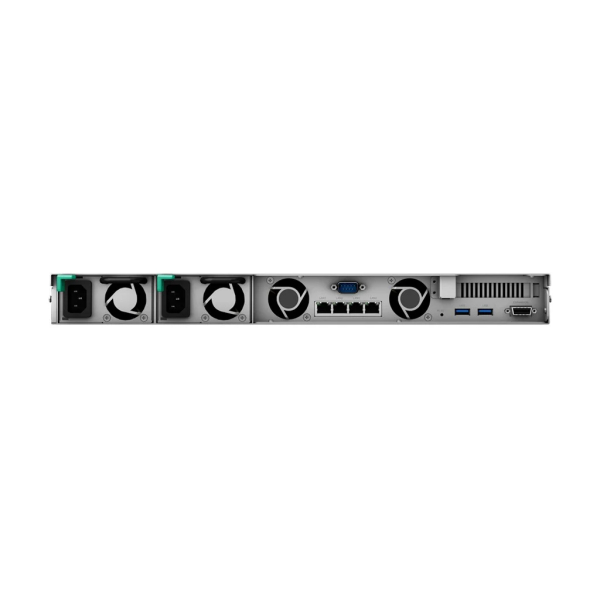

Synology RackStation RS1619xs+ 1U Xeon NAS - Server
|
CPU |
CPU Model | Intel Xeon D-1527 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 2.2 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine | ||
|
Memory |
System Memory | 8 GB DDR4 ECC UDIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) | |
| Notes |
| |
|
Storage |
Drive Bays | 4 |
| Maximum Drive Bays with Expansion Unit | 16 (RX1217/RX1217RP x 1) | |
| M.2 Drive Slots | 2 (NVMe & SATA) | |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive* | ||
| Notes |
| |
|
External Ports |
RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 1 | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
|
PCIe |
PCIe Expansion | 1 x Gen3 x8 slot (x8 link) |
|
Appearance |
Form Factor (RU) | 1U |
| Size (Height x Width x Depth) | 44 mm x 480 mm x 518.6 mm | |
| Weight | 8.16 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02) | |
| Notes | The rail kit is sold separately | |
|
Others |
System Fan | 40 mm x 40 mm x 2 pcs |
| Fan Speed Mode |
| |
| Power Recovery | ||
| Noise Level* | 39.3 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 150 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 68.68 W (Access) 34.78 W (HDD Hibernation) | |
| British Thermal Unit | 234.35 BTU/hr (Access) 118.67 BTU/hr (HDD Hibernation) | |
| Notes |
|
