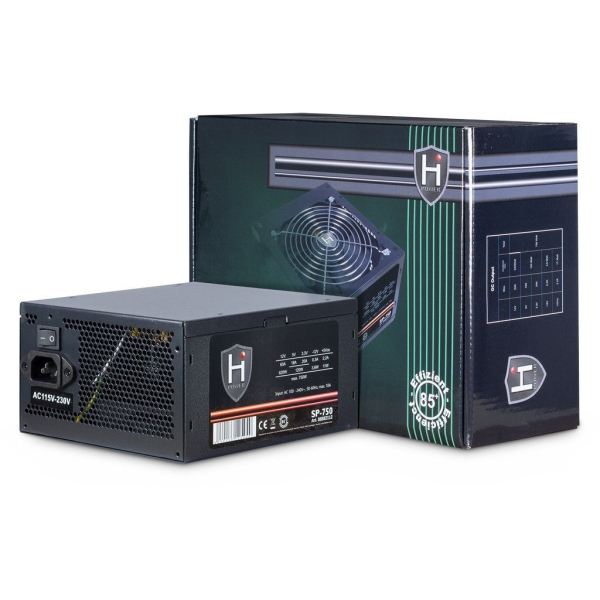

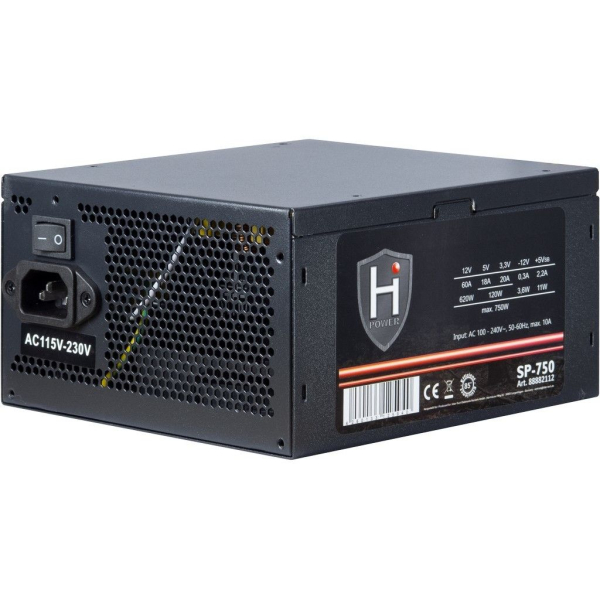

9%Psu ATX Inter-Tech HIPOWER SP-750 W 85+
Special Features
- Over 85% efficiency
- 60 A on the 12 V line
- OPP, OVP, SCP

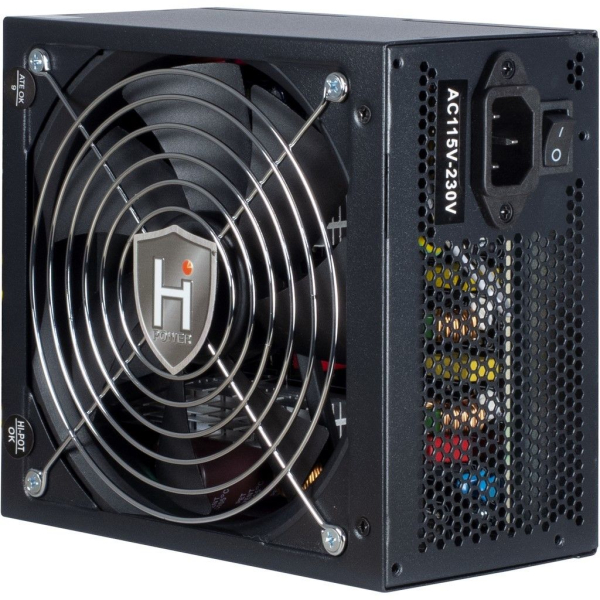

- Powerful 140 mm fan
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100/240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section A¦ 1 x power 8 pin +12V with detachable 4 pin section A¦ 2 x 8 pin PCI Express power with detachable 2 pin section A¦ 6 x 15 pin Serial ATA power A¦ 6 x 4 PIN internal power A¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, A±12 V |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 20 A A¦ +5V - 18 A A¦ +12V - 60 A A¦ -12V - 0.3 A A¦ +5VSB - 2.2 A |
| Efficiency | 86.6% at 50% Load, 84.8% at 20% Load, 83.3% at full Load |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable ties |
| Cables Included | Power cable |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overpower protection, short-circuit protection |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Sound Emission | 19 dB |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.48 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 1.82 kg |
