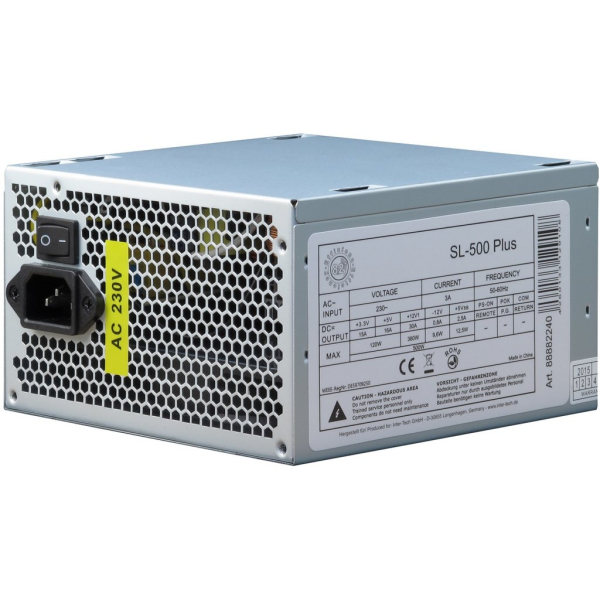

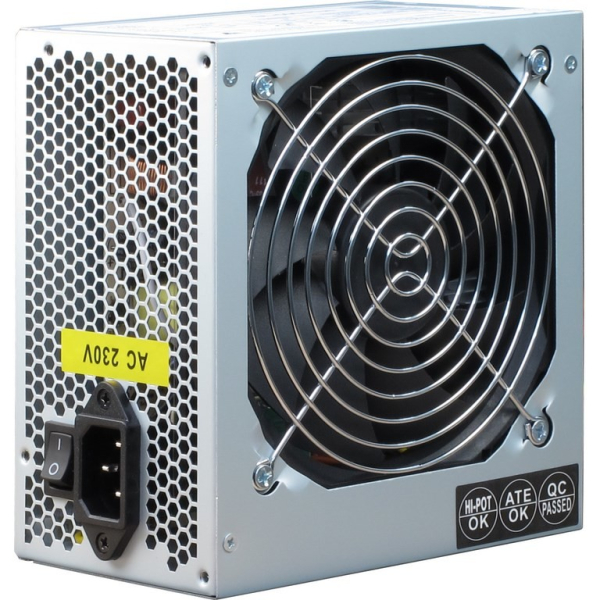

15%PSU 500W Inter-Tech SL-500 Plus ATX
The SL-500 PLUS offers its user a high
efficiency of at least 82% and thus protects the environment and your wallet.
With four S-ATA and three Molex power
connections, PCIe 6 + 2-pin, 4 + 4-pin and 20 + 4-pin plugs, the power supply
offers a wide range of configuration options, making it ideal for use with both
old and new computer systems.
specification
power
Overall
performance
500 W
AC input
voltage
230 V
AC input
frequency
50-60 Hz
Input
current
3 A
Power
factor correction filter (PFC)
active
Combined
current (+ 3.3V)
120 W
Combined
electricity (+ 12V)
360 W
Combined
current (+ 5V)
120 W
Combined
current (-12V)
9.6 W
Combined
current (+ 5Vsb)
12.5 W
Max.
Output current (+ 3.3V)
15 A
Max.
Output current (+ 12V)
30 A
Max output
current (+ 5V)
16 A
Max.
Output current (-12V)
0.8 A
Max.
Output current (+ 5Vsb)
2.5 A.
Efficiency
82%
Energy
protection properties
Overcurrent, overvoltage, short circuit
Connections and interfaces
Motherboard connector
20 + 4 pin ATX
Number of
Molex connections 4pin
3
Number of
SATA power connectors
4th
Number of
PCI Express power connectors 6 + 2pin
1
PCI
Express power cord length
45 cm
CPU
connector (4 + 4 pin)
CPU power
cable length
45 cm
ATX power
plug (20 + 4 pin)
Floppy
drive power connection
1
Floppy
disk drive connector
Cable
type
Non-modular
design
Product
color
silver
cooling
active
Fan
diameter
12 cm
Number of
fans
1 fan
Fan
placement
Above
On / off
switch
Packing
data
Supplied
cables
AC
Packaging
width
230 mm
Packaging
depth
170 mm
Packing
height
95 mm
Package
weight
1.45 kg
Packaging
type
box
Services
purpose
Pc
Power
Supply Unit (PSU) form factor
ATX
Noise
level
25 dB
ATX
version
2.4
Certification
CE
Weight and dimensions
width
150 mm
depth
140 mm
height
86 mm
Weight
1.26 kg
Other
functions
Cable ties
included
Warranty
card
operating
manual
