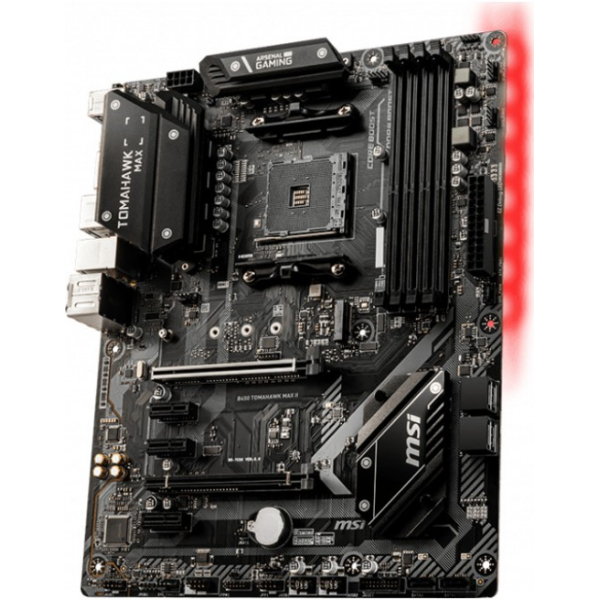

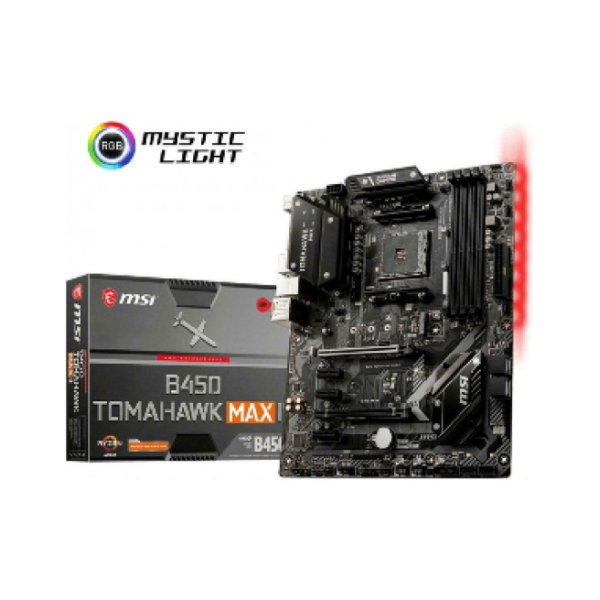

11%Motherboard MSI B450 TOMAHAWK MAX II Socket AM4 4xDDR4 ATX
Mainboard
Form Factor
ATX
Chipset Type
AMD B450
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 2933
MHz (O.C.), 3000 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.),
4000 MHz (O.C.), 4133 MHz (O.C.), 3066 MHz (O.C.)
Processor Socket
Socket AM4
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header,
2 x USB 3.2 Gen 1 - header
RAM
Max Supported Size
128 GB
Features
Dual channel memory architecture, Supported ECC modules operate
in non-ECC mode, A-XMP support
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC892/ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller
Realtek RTL8111H
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 3 x PCIe 2.0 x1, 4 x DIMM 288-pin, 1 x PCIe 2.0 x16
(x4 mode (x2 mode any PCI Express 2.0 x1 slot is occupied)), 1 x PCIe 3.0 x16
(x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with
Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics))
Interfaces
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 /
RAID 10, SATA-600 / PCIe -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
FireWire

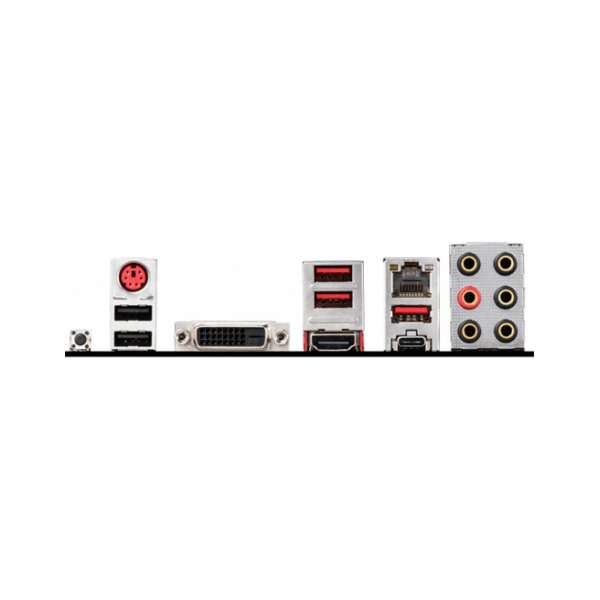

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2
Storage Ports
6 x SATA-600 (RAID), 1 x M.2
FireWire Ports Configuration (Active)
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x
USB 2.0
FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 4 x USB 2.0
Dimensions & Weight
Width
30.5 cm
Depth
24.4 cm
