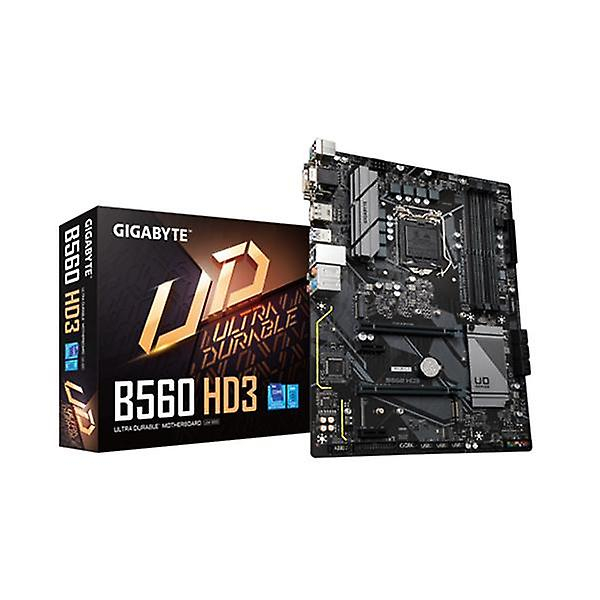

Motherboard Gigabyte B560 HD3 ATX LGA1200 Socket
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7, Core i9
Chipset Type
Intel B560
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
3200 MHz, 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz
Processor Socket
LGA1200 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
2 x Thunderbolt - header, 1 x audio - header, 1 x serial -
header, 1 x SPDIF out - header, 1 x parallel - header, 6 x USB 2.0 - header, 2 x
USB 3.2 Gen 1 - header
RAM
Max Supported Size
128 GB
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory
architecture, Supported ECC modules operate in non-ECC mode
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 3.0 x16
(x4 mode), 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA, SATA-600 / PCIe 3.0
-connectors: 1 x M.2, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600, M.2 socket
FireWire
USB 3.2 Gen 1
Storage Ports
6 x SATA-600, 2 x M.2
FireWire Ports Configuration (Active)
4 x USB 3.2 Gen 1 + 2 x USB 2.0
FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 6 x USB 2.0
Software
Software Included
EasyTune, Xpress Install, GIGABYTE App Center, Norton Internet
Security, GIGABYTE Fast Boot, @BIOS, GIGABYTE Smart Backup, Realtek Gaming LAN
Bandwidth Control
Dimensions & Weight
Width
30.5 cm
Depth
22.5 cm
