Ψύκτρα επεξεργαστή Noctua NH-U14S TR4-SP3 140mm AMD

General
Notes and warnings
Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

Cooler Specification
Socket compatibility : AMD TR4 & SP3
Height (without fan) : 165 mm
Width (without fan) : 150 mm
Depth (without fan) : 52 mm
Height (with fan) : 165 mm
Width (with fan) : 150 mm
Depth (with fan) : 78 mm
Weight (without fan) : 865 g
Weight (with fan/s) : 1030 g
Material  : Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP : see TDP guide

Fan compatibility : 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

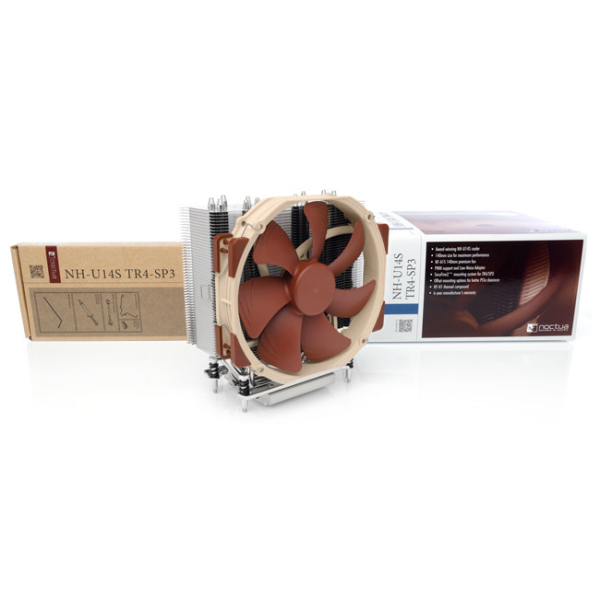

Scope of delivery
 NF-A15 PWM premium fan
 Low-Noise Adaptor (L.N.A.)
 NT-H1 high-grade thermal compound
 SecuFirm2 mounting kit
 Anti-vibration pads and fan-clips for second NF-A15 (optional)
 Noctua metal case-badge

Warranty : 6 Years

FAN Specification
Model : Noctua NF-A15 PWM
Bearing : SSO2

Max. Rotational Speed (+/- 10%) : 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) : 1200 RPM
Min. Rotational Speed (PWM, +/-20%) : 300 RPM
Max. Airflow : 140,2 m³/h

Max. Airflow with L.N.A. : 115,5 m³/h

Max. Acoustical Noise : 24,6 dB(A)
Max. Acoustical Noise with L.N.A. : 19,2 dB(A)
Input Power : 1,56 W
Voltage Range : 12 V
MTTF : > 150.000 h
