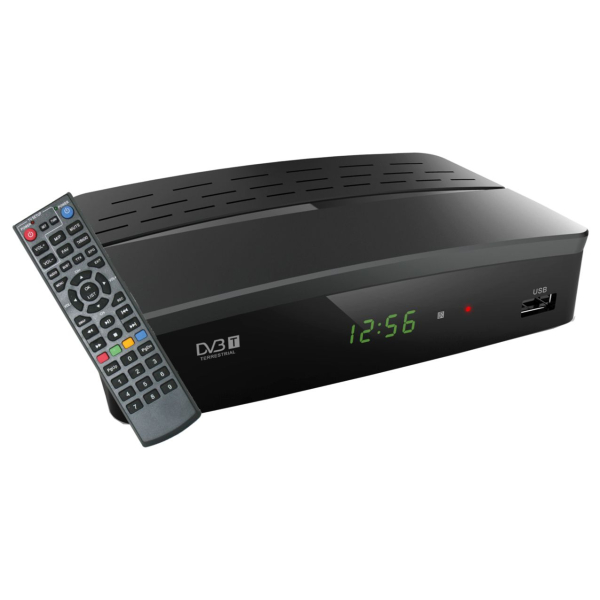

Digital TV Decoder DVB-T Full HD MPEG2 / MPEG4
Specifications:
Main Chip: MSD7T01 (LQFP128)
SDRAM: Internal (DDRII 32M*16bit)
Tuner: MXL608
System Crystal: 24MHz ± 20ppm
LED spec: Power Indicator (LED):(Standby, Lock),four "8" LED Display or 3 keys(for
power,ch-,ch+)
Θύρες: SCART x1, COAXIAL x1, A-Type HDMI Connector x1, Antenna IN, Antenna OUT
DVB-T2:
Terrisal Receiver Standard: DVB-T2/T(EN 302755/EN 300744)
Constellation: QPSK / 16QAM / 64QAM/256QAM
FEC: 1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval: 1/4, 1/8, 1/16, 1/32,1/128
FFT Mode: 2K/ 8K/32K
Support Single and multiple PLPS: YES
Display Mode: Auto / 480i/p, 576i/p, 720p, 1080i/p
Reproduction from USB: FAT12, FAT 16, FAT 32, NTFS
Reproduction video files: TS, MPG, MP4, AVI, MKV, OGG
Reproduction image : JPEG/BMP
Product dimensions : 150mm x 110mm x 37.50mm
